GX-6000 Transceptor Marítimo VHF / AIS

Yaesu Standard Horizon

  • GX-6000 Transceptor Marítimo VHF / AIS
Disponibilidade: Indisponível
Avise-me quando chegar

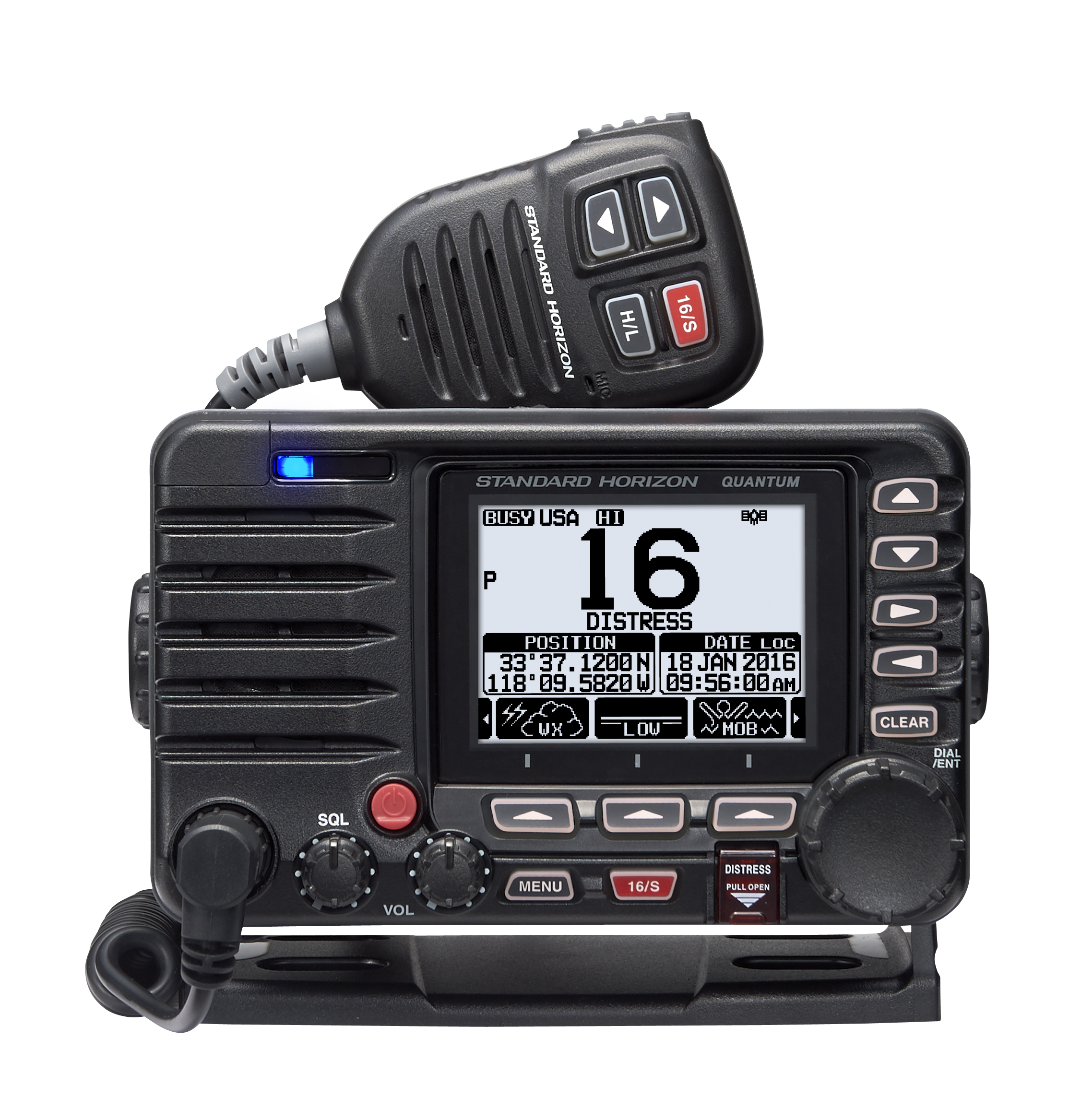

GX-6000 Transceptor Marítimo VHF / AIS

Quantum GX6000 VHF / AIS

Introducing the all new Quantum GX6000 Commercial Grade Fixed Mount VHF with NMEA2000 and Integrated AIS receiver.

  • Integrated AIS Receiver
  • AIS / AIS SART target display: MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG
  • NMEA2000 and NMEA0183 compatible
  • Programmable CPA and TCPA collision avoidance alarms.
  • Dual Zone 25W PA / Loud Hailer with preprogrammed fog signals and listen back
  • GPS Compass, Waypoint and GPS status pages
  • E2O Easy to Operate menu system
  • Oversized rotary channel knob with push to enter
  • Front panel microphone can be connected to rear panel and extended 20 feet using MEK-4 mic extension kit
  • Capable of connecting two optional RAM4 or four wireless RAM4W
  • Intergrated Voice Recorder to play back up to two minutes of RX receive audio
  • Advanced 80dB Commercial Grade receiver with Local / Distance attenuator
  • Integrated 32 Code  (FVP-42) and 4 Code (CVS2500A) Voice Scramblers
  • 3 Year Waterproof Warranty



Features

NMEA 2000
Plug and play NMEA 2000 interface. The integrated NMEA 2000 supports all PGN's for Navigation, GPS, AIS and DSC function. Simply plug the NMEA 2000 into your existing network to complement your system with full VHF and DSC features.

Wireless Second Station RAM4W capability
Wirelessly control all radio functions of the GX6000 with the interface of the RAM4W wireless Remote Access Microphone. Using the SCU-30 Wireless Access Point plugged into the back of the radio, you have the capability of syncig up to 4 RAM4W units. With an operating range of up to 65 feet, the RAM4W allows you to control all Radio functions including DSC Calling, Position Polling, Grupo Calling and more, or use the RAM4W to intercom between the main station or between other wireless RAM4W units.

Built In AIS Receiver
The Quantum GX6000 displays AIS target information(MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG) on the large front panel display. Having this information allows you to contact an AIS Ship directly using DSC, shows your vessels position in relation to  AIS targets and alerts you when an AIS ship may be approcaching too close to your location via the Closest Point of Approach (CPA) Alarm.

Integrated 25W PA / Loud Hailer
The Quantum GX6000 includes a 25W Loud Hailer with Fog signals; Bells and Whistles with listen back. For added benefit, the last selected VHF channel can be heard when in the PA or Fog modes and the AIS Display may be accessed and used.
In addition, the Quantum GX6000 allows you to start a fog horn and then view the AIS page simultaneously.

Integrated Voice Scrambler
Loaded with an internal 32 code voice scrambler for private communications. the 32 code scrambler is compatible with all Standard Horizon 4 code scramblers already in use. Simply select a channel to be scrambled then select a common code between the transmitting and receiving radios and your communications are secure.



SPECIFICATIONS
Performance specifications are nominal, unless otherwise indicated, and are subject to change without notice. Measured in accordance with TIA/EIA-603.
GENERAL
Channels All USA, International and Canadian
Normal Input Voltage 13.8 V DC
Operating Voltage Range 11 V to 16.5 V
Current Drain
Standby 0.55 A
Receiver (at Maximum AF Output) 0.9 A
Transmit 5.0 A (Hi), 1.0 A (Lo)
DSC Transmitted Call Log 24
DSC Distress Call Log 27
DSC Received Call Log 64
Individual Call Directory 80
Group Call Directory 32
Waypoint Directory 100
Display Type 2.8" x 2" (70 x 51 mm)
Full Dot Matrix (222 x 162 pixels)
Dimensions (W x H x D) 6.9" x 4.3" x 6.8" (175.5 x 110 x 173.3 mm)
Flush-Mount Dimensions (WxHxD) 6.2" x 3.7" x 6.2" (157.4 x 93.4 x 158 mm)
Weight 3.7 Ibs (1.66 kg)
TRANSMITTER
Frequency Range 156.025 MHz to 157.425 MHz (USA)
156.025 MHz to 161.600 MHz (INTERANTIONAL)
RF Output Power 25 W (Hi), 1 W (Lo)
Conducted Spurious Emissions Less than -80dBc (Hi), -66 dBc(Lo)
Audio Response within +1 / -3dB of a 6 dB/Octave
pre-emphasis characteristic at 300 to 3000 Hz
Audio Distortion Less than 5%
Modulation 16K0G3E (for Voice), 16K0G2B (for DSC)
Frequency Stability ±0.0003% (-20°C to +60°C)
FM Hum and Noise 50 dB
RECEIVER (for Voice and DSC)
Frequency Range 156.050 MHz to 163.275 MHz
Sensitivity
20 dB Quieting 0.35 µV
12 dB SINAD 0.30 µV
Squelch Sensitivity (Threshold) 0.13 µV
Modulation Acceptance Bandwidth ± 7.5 kHz
Selectivity (Typical)
Spurious and Image Rejection 80 dB for Voice (75 dB for DSC)
Intermodulation and Rejection 80 dB for Voice (75 dB for DSC)
Audio Output 10 W (at 8 ohms external speaker output)
Audio Response within +1 / - 3dB of a 6 dB / Octave de-emphasis characteristic at 300 to 3000 Hz
Frequency Stability ±0.0003% (-20°C to +60°C)
Channel Spacing 25 kHz
DSC Format ITU-R M.493-13
Attenuator (Local) Approx. 10 dB
RECEIVER (for AIS)
Frequency 161.975 MHz (CH A), 162.025 MHz (CH B)
Sensitivity 0.5 µV (at 12 dB SINAD)
Selectivity (Typical)
Spurious and Image Rejection 70 dB
Intermodulation and Rejection 70 dB
NMEA INPUT/OUTPUT
4800 Baud selected:
NMEA 0183 Input (4800 baud) GGA,GLL, GNS, RMC, GSA, & GSV
NMEA 0183 Output (4800 baud) DSC,DSE, GGA,GLL, GNS, RMC, GSA &GSV
NMEA 0183-HS AIS Output (38400 baud) VDM
38400 Baud Selected:
NMEA 0183-HS Input (38400 baud) GGA, GLL, GNS, RMC, GSA & GSV
NMEA 0183-HS Output (38400 baud) DSC, DSE, GGA, GLL, GNS, RMC, GSA,GSV VDM
NMEA 0183-HS AIS Output(38400 baud) VDM
SCU-31 EXTERNAL GPS ANTENNA (Optional)
Receiver Channels 66 Channels
Sensitivity Less than -147 dBm
Time to First Fix 1 minute typical (@Cold Start)
5 Seconds typical (@Hot Start)
Geodetic Datum

WGS84
