IC-M803 Transceptor Marítimo SSB ICOM

Icom

  • IC-M803 Transceptor Marítimo SSB ICOM
  • IC-M803 Transceptor Marítimo SSB ICOM
  • IC-M803 Transceptor Marítimo SSB ICOM
Disponibilidade: Este produto não está disponível para venda em nossa loja virtual. Por favor, solicite uma cotação pelo e-mail sac@radiohaus.com.br

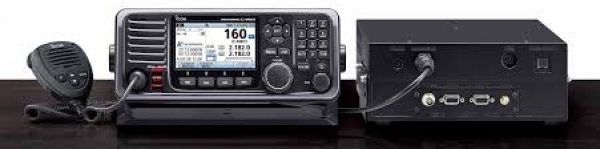

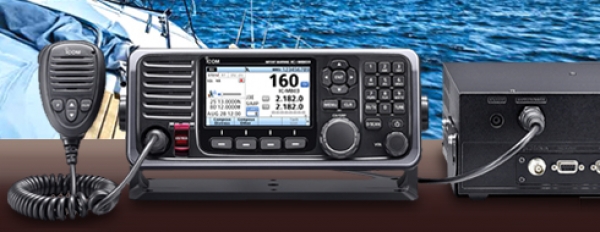

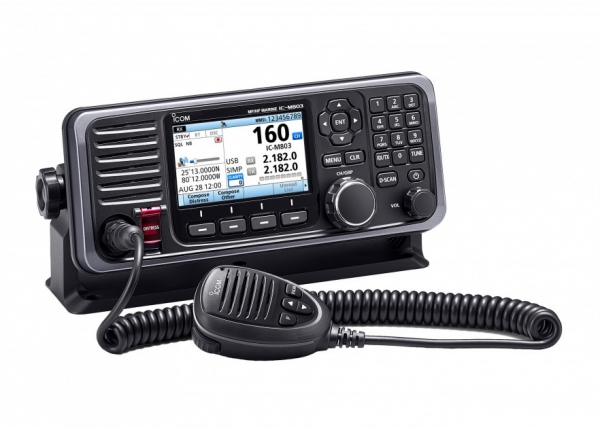

IC-M803 Transceptor Marítimo SSB ICOM

The M803 is the long range digital communication radio for any cruiser. Reach both marine and ham frequencies with the Class E DSC MF/HF certification. It is packed with features to keep users safe such as a distress call button, audio replay, GPS and more. The intuitive interface of the color TFT display and the similarity of the user interface of the M605 allows for easy operation between the two radios. The M803 also includes an advanced RF direct simple sampling system that improves higher receiver sensitivity and higher quality audio.



Output Power:

  150W

Frequencies:

  0.5-29.99 MHz

Channels:

  830 (160 programmable, 72 ITU SSN duplex, 249 ITU SSB simplex, 193 ITU FSK duplex, 160 email)

Waterproof:

  IPX7 (controller only)

GPS:

  Built-in

Large Color Display

Users will like the large 4.3" wide viewing angle color TFT display. Clearly see the high resolution display icons on the LCD screen from numerous positions with the nearly 180 degree wide viewing angle, which provides various installation placement possibilities. The night mode display offers readability in low-light conditions.

Intuitive User Interface

Smoothly operate and sail with the M803’s large main dial and keys to access functions such as accessing MMSI numbers, vessel numbers, and channels with the full alpha-numeric keypad. Assign one of the software key functions to the microphone’s programmable button for quick access. Additionally the head unit offers programmable keys for customizable access.

Emergency Distress Button

The M803’s big and easily identifiable emergency distress button is encased in a spring loaded cover. Once pressed a digital distress signal is sent with GPS coordinates and calls for help to other ships or coast stations. The GPS receiver offers GPS, GLONASS, SBAS, position data, speed and UTC data when using the supplied GPS antenna. Position data may be output from the NMEA 0183 port for use with other devices.

Dedicated DSC Scanning

The dedicated DSC watch-keeping receiver continuously scans the six distress channels in rotation. If you are in process with a DSC call and receive another call, the M803 can switch between calls with the Multiple Task Mode function. 100 MMSI numbers (75 individual/25 group) for DSC calls can be stored with a 10-character name.

Two Minute Memory Instant Replay Memory

The Instant Replay Function allows users to replay up to two minutes of previous conversations or calls. The function constantly loops and records over older audio.

Additional Features

  • NMEA 0183 Version 4.10 data input/output (4800-38400 bps)
  • HF email operation with frequency, mode and bandwidth memorization*
  • *Consult with an HF email provider for details

Este produto não é comercializado pela Radiohaus no Brasil. Você poderá comprá-lo na Radiohaus America. Nesse caso o equipamento será enviado dos EUA, e para usá-lo legalmente no Brasil, você precisará fazer a homologação simplificada para uso próprio junto a ANATEL. Saiba mais aqui

General

Frequency coverage

Rx

Tx



DSC



500 kHz–29.9999 MHz (Continuous)

1.6–2.9999, 4.0–4.9999, 6.0–6.9999,

8.0–8.9999, 12.0–13.9999, 16.0–17.9999,

18.0–19.9999, 22.0–22.9999, 25.0–27.5000 MHz

2.1875, 4.2075, 6.3120, 8.4145, 12.5770, 16.8045 MHz

Mode

Tx/Rx






DSC


J3E (USB, LSB),
J2B (AFSK),
F1B (FSK),
A1A (CW),
H3E* (AM) (* H3E receive only)
J2B

Antenna impedance 50Ω (unbalanced)
Usable temperature range

-20°C to +55°C, -4°F to +131°F

Frequency stability

Tx/Rx

DSC


±10 Hz (below 29.999 MHz)
±10 Hz
Power supply requirement 13.6V DC ±15% (Negative ground)
Current drain
(at 13.6V DC)

Receive

Transmit



Less than 3.0 A (Maximum audio output)

30A (Maximum output power)

Dimensions (Projections not included)

Main unit
Controller


240 × 94 × 238 mm, 9.4 × 3.7 × 9.4 in (W × H × D)
274 × 114 × 86 mm, 10.8 × 4.5 × 3.4 in (W × H × D)

Weight
Main unit
Controller


4.41 kg, 9.7 lb (approximate)
760 g, 1.7 lb (approximate)
Transmitter
Output power
150, 100, 60, 20 W PEP (selectable)
Spurious emissions Less than -62 dB (Peak output power)
Carrier suppression More than 40 dB (Peak output power)
Unwanted sideband suppression More than 55 dB
(Peak output powerwith 1500 Hz AF Input)
Microphone impedance 600Ω
Receiver

Sensitivity at 20 dB SINAD

J3E, A1A 0.5–1.5999 MHz
1.6–1.7999 MHz
1.8–29.9999 MHz
30 dBμV emf
13 dBμV emf
8 dBμV emf
J2B, F1B 1.6–1.7999 MHz
1.8–29.9999 MHz
4 dBμV emf
–1 dBμV emf
H3E 0.5–1.5999 MHz
1.6–1.7999 MHz
1.8–3.9999 MHz
44 dBμV emf
30 dBμV emf
24 dBμV emf

Sensitivity at 10 dB S/N

J3E, A1A 0.5–1.5999 MHz
1.6–1.7999 MHz
1.8–29.9999 MHz
16 dBμV
–1 dBμV
–6 dBμV
J2B, F1B 1.6–1.7999 MHz
1.8–29.9999 MHz
–10 dBμV
–15 dBμV
H3E 0.5–1.5999 MHz
1.6–1.7999 MHz
1.8–3.9999 MHz
30 dBμV
16 dBμV
10 dBμV
DSC Sensitivity (J2B) 6 dBμV emf (at 20 dB SINAD)
–8 dBμV (at 10 dB S/N)
–6 dBμV emf (at 1% BER)
Spurious response
  Tx/Rx

  DSC

More than 70 dB
(0.5–29.9999 MHz)
More than 70 dB



Audio output power 4.0W at 10% distortion with a 4Ω load
Clarity variable range ±150 Hz

All stated specifications are subject to change without notice or obligation.

Applicable IP Rating

Ingress Protection Standard
Remote controller IPX7 (1m depth water for 30 minutes)

Supplied Accessories

  • Remote controller
  • DC power cable
  • Mounting bracket kits
  • Remote control cable (5 m, 16.4 ft)
  • GPS antenna (5m, 16.4 ft cable)
  • ACC plugs
  • Microphone, HM-214H
  • Microphone hanger
  • Spare fuses

Antenna

AH-710
Folded dipole (1.9-30MHz)

AH-710 Folded dipole antenna


Antenna Tuner

AT-140



AT-140
MN-100
Antenna matcher
(26.2ft antenna wires x 2 attached)

MN-100 Antenna Matcher
MN-100L
Antenna matcher
(49.2ft antenna wire attached)

MN-100L
OPC-1465
Shielded control cable


OPC-1465


External Speakers

SP-24

SP-24 External Speaker


Flush Mount Kit

MB-75

MB-75 Flush Mount Kit


Microphone

HM-214H

HM-214H Microphone
