IC-M220 Transceptor VHF Marítimo 25W ICOM

Icom

  • IC-M220 Transceptor VHF Marítimo 25W ICOM
  • IC-M220 Transceptor VHF Marítimo 25W ICOM
  • IC-M220 Transceptor VHF Marítimo 25W ICOM
Disponibilidade: Este produto não está disponível para venda em nossa loja virtual. Por favor, solicite uma cotação pelo e-mail sac@radiohaus.com.br

IC-M220 Transceptor VHF Marítimo 25W ICOM

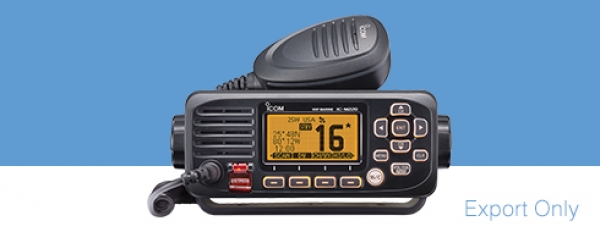

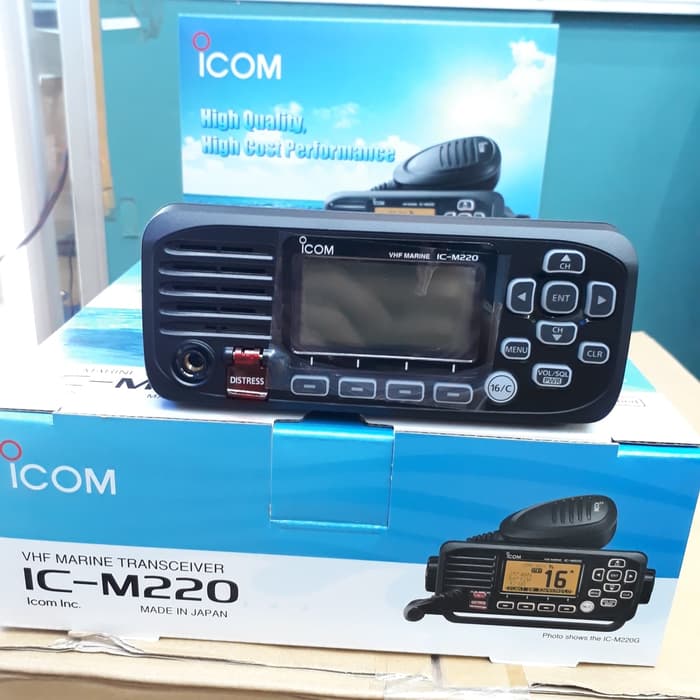

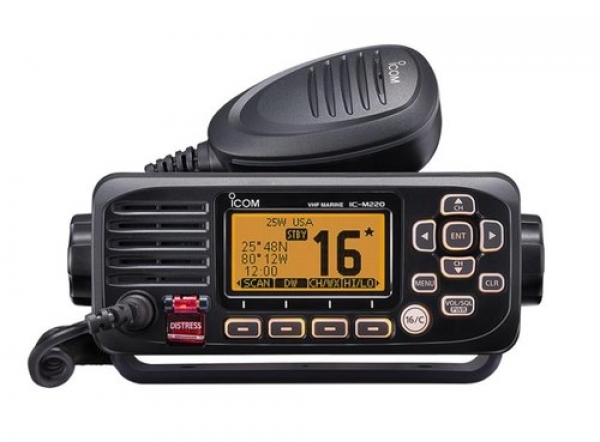

The M220 gives boaters an entry level VHF fixed mount with DSC Class D at a great value. This small compact unit includes a large easy to read LCD with a dot-matrix display, plus is IPX7 rated and comes with the AquaQuake draining function for optimal audio. This is a perfect radio for boats that need a basic radio or boats with limited
space.



Output Power:



25W

Waterproof Rating:



IPX7



Features

  • Dualwatch and tri-watch function

  • Priority scan

  • Display & keypad backlighting

  • Common NMEA interface for external GPS/NAV connection

  • Tag scan and favorite channel functions

  • External speaker connection

  • Weather channel with weather alert



Este produto não é comercializado pela Radiohaus no Brasil. Você poderá comprá-lo na Radiohaus America. Nesse caso o equipamento será enviado dos EUA, e para usá-lo legalmente no Brasil, você precisará fazer a homologação simplificada para uso próprio junto a ANATEL. Saiba mais aqui

General
Frequency Range
Tx
Rx
CH70

156.025–157.425 MHz
156.050–163.275 MHz
156.525 MHz
Usable channels USA, CAN, INT, WX channels
Type of emission 16K0G3E (FM), 16K0G2B (DSC)
Power supply requirement 13.8 V DC nominal (11.7–15.9 V DC)
Current drain
Tx (at 25W output)
Rx AF max.

5.0 A
1.2 A
Operating temperature range –20°C to +60°C; –4°F to +140°F
Antenna Impedance 50 Ω (SO-239)
Dimensions (W×H×D)
(Projections not included)
156.5 × 66.5 × 110.1 mm;
6.2 × 2.6 × 4.3 in
Weight (approximately) 700 g; 1.5 lb (with HM-237B)
NMEA formats
Input
Output

RMC, GGA, GNS, GLL, VTG
DSC, DSE, RMC, GSA, GSV
Transmitter
Output power (at 13.8 V DC) 25 W, 1 W
Max. frequency deviation ±5kHz
Frequency tolerance ±5ppm
Spurious emissions Less than –60 dBc
Receiver
Sensitivity
Main
DSC

–13 dBμ typ. (12 dB SINAD)
–5 dBμ emf typ. (1% BER)
Squelch sensitivity Less than –10dBμ
Adjacent Channel Selectivity
Main
DSC

More than 68 dB
More than 68 dBμ emf (1% BER)
Intermodulation
Main
DSC

More than 63 dB
More than 55 dBμ emf (1% BER)
Hum and noise More than 40dB
Audio output power 4.5W typical
(at 10% distortion with a 4Ω load)

Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.

Applicable IP Rating

Ingress Protection Standard
Water IPX7 (Waterproof protection)

Supplied Accessories

  • Hand microphone, HM-237
  • DC power cable
  • Mounting bracket kit



Flush Mount Kit

MBF-5

MBF-5 Flush Mounting Kit


Hailer

SP-37

SP-37 Hailer


Microphone

HM-237B

HM-237B Microphone
