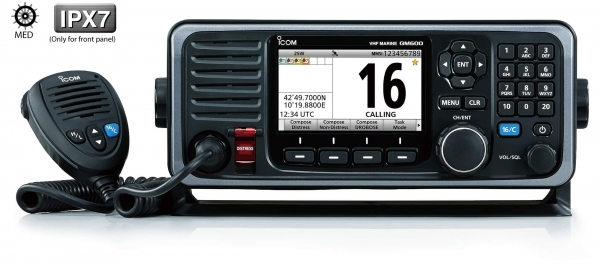

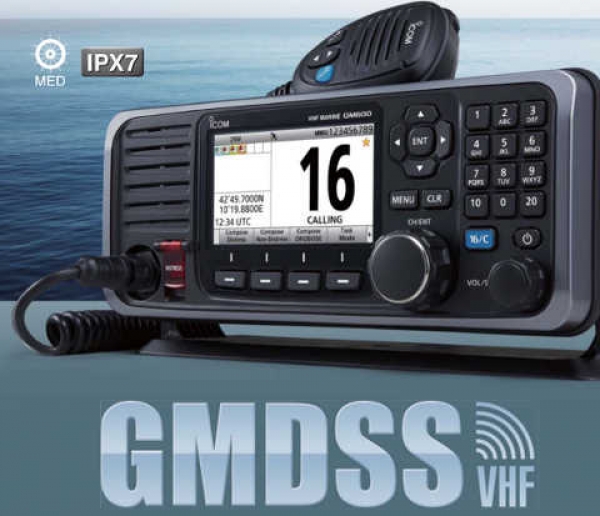

IC-GM600 The Latest GMDSS Functionality in a Very User-Friendly Package

The GM600 meets the GMDSS requirements as required for SOLAS regulated commercial vessels engaging in international voyage. With the optional PS- 310 DC-DC converter, the GM600 meets the MED, "wheel mark" requirements for European merchant ships.



Output Power:

  25W

DSC Rating:

  Class A

NMEA:

  NMEA 0183 interface for GPS connection

Waterproof Rating:

  IPX7 (front panel only)



Dedicated Distress Button

Distress buttonThe GM600 meets ITU class A DSC. The radio includes a dedicated DSC receiver which continuously monitors CH 70 and is independent of the main receiver and other operation. The DSC Multi-task function allows you to show up to 7 received and transmitted DSC messages. While using the DSC Multi-task screen, the operating channel is shown at the right side of the screen.



Large User Rriendly Display

DisplayThe GM600 comes with a 4.3" color TFT LCD with user-friendly icons. Navigate the menu via the main dial knob or the up and down keys. The most used functions are lined up at the bottom of the display and users can toggle with the left and right keys. The display also allows you to select the day and night modes according to how light it is outside.

Additional Features

  • Large speaker for clear audio
  • 10W audio output when plugged into external speaker
  • DC-DC power supply option for floating ground connection
  • Printer connector (D-sub 25-pin)
  • VDR (voyage data recorder)/external SP connector
  • Dual watch & tri watch functions
  • Instant access to CH 16 and call channel
  • Tag scan and favorite channel functions
  • Auto scan function

General

Frequency Range
  Tx
  Rx
  CH70


156.025–161.600 MHz
156.025–162.000 MHz
156.525 MHz

Usable channels

INT channels

Type of emission

16K0G3E (FM), 16K0G2B (DSC)

Power supply requirement
  Tx (at 25W output)
  Rx (Maximum audio)

13.8 V DC (GM600)
24 V DC (21.6–31.2 V)
12 V DC (10.8–15.6 V)

Current drain (with PS-310 #01)
  Tx (at 25W output)
  Rx (Maximum audio)

 (approximately)
3.3A (with PS-310 #01)
2.0A (with PS-310 #01)

Operating temperature range

–15°C to +55°C

Antenna Impedance

50Ω (SO-239)

Weight (approximately)

1600g

IEC 61162-1 in/out format
  Input
  Output


RMC, GGA, GNS, GLL, VTG
DSC, DSE

Transmitter

Output power

25W, 1W

Max. frequency deviation

±5 kHz

Frequency error

Less than ±0.5kHz

Spurious emissions

Less than 0.25μW

Adjacent channel power

More than 70dB

Residual modulation

More than 40dB

Audio harmonic distortion

Less than 10% (at 1 kHz, 60% deviation)

Receiver

Intermediate frequency

DSC receiver

30.15MHz, 450kHz (1st/2nd)
46.35MHz, 450kHz (1st/2nd)

Sensitivity 20dB SINAD

DSC (1% BER)

Less than –7dBμ emf. typ.
Less than –7dBμ emf. typ.

Adjacent channel selectivity

DSC receiver

More than 75dB
More than 73dBμ emf

Spurious response

DSC receiver

More than 75dB
More than 73dBμ emf

Intermodulation

DSC receiver

More than 75dB
More than 73dBμ emf

Hum and noise ratio

More than 40dB

Audio output power

External speaker

Internal speaker

(at 10% distortion)
10 W (4 Ω load)
2 W

Measurements made in accordance with EN 301 925. These specifications are described when the GM600 is used with the PS-310. All stated specifications are subject to change without notice or obligation.

Applicable IP Rating

Ingress Protection Standard

Water

IPX7 (1m depth of water for 30 minutes - front panel only)



Supplied Accessories

  • Hand microphone, HM-214V

  • Mounting bracket kit

  • DC power cable

Picture of PS310

FONTE DE ALIMENTAÇÃO PS310 01

 24V DC-DC converter
