IC-SAT100 Rádio PTT via Satélite ICOM

Icom

  • IC-SAT100 Rádio PTT via Satélite ICOM
  • IC-SAT100 Rádio PTT via Satélite ICOM
  • IC-SAT100 Rádio PTT via Satélite ICOM
Disponibilidade: Este produto não está disponível para venda em nossa loja virtual. Por favor, solicite uma cotação pelo e-mail sac@radiohaus.com.br

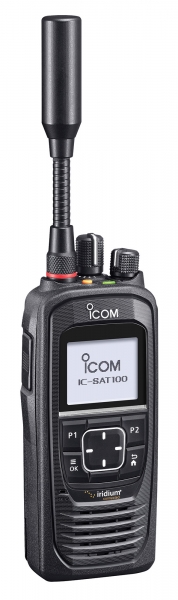

IC-SAT100 Rádio PTT via Satélite ICOM



One-to-Many Global Communications with a Push of a Button

Icom’s IC-SAT100 allows users around the world to communicate with a group of PTT radios at the push of a button. To do this, the IC-SAT100 utilizes Iridium® satellite network covering the earth including both poles providing wide area global communication anywhere on the planet.




SATELLITE PTT

Icom’s IC-SAT100 radios uses SATELLITE PTT (Push-To-Talk), which is a two-way radio system using the Iridium® satellite network. This network allows you to use the IC-SAT100 in remote, isolated areas without mobile phones or landline network infrastructure or if terrestrial network infrastructure is rendered unusable by human or natural disasters.

One-to-Many Communications

Satellite PTTUnlike satellite phones, IC-SAT100 users can immediately start talking to all the radios in the same talkgroup, with just a push of the transmit (PTT) button.







Real-Time Low-Latency Communication

Real-time low-latency communicationUsing 66 Low Earth Orbit (LEO) Iridium® satellites, the IC-SAT100 provides low-latency communication, and broader, more reliable network coverage, compared to Geosynchronous Equatorial Orbit (GEO) satellites.






IC-SAT100 Features

  • Ready for harsh environments. Water, shock, dust proof with MIL-STD 810G & IP67 waterproof rating
  • Operates 100% of the globe
  • Built-in emergency key
  • Secure communications with AES encryption
  • Short Data Message function
  • Voice recording function
  • Talkgroup Scan
  • Priority Interrupt Calling
  • Vibration Alert
  • Built-in Bluetooth® and GPS Receiver
  • Compatible with other Iridium® PTT devices





Este produto não é comercializado pela Radiohaus no Brasil. Você poderá comprá-lo na Radiohaus America. Nesse caso o equipamento será enviado dos EUA, e para usá-lo legalmente no Brasil, você precisará fazer a homologação simplificada para uso próprio junto a ANATEL. Saiba mais aqui

IC-SAT100

Dimensions

57.8 × 135 × 32.8 mm, 2.3 × 5.3 × 1.3 in (W × H × D)

Weight (Approximate)

360g, 12.7 oz (with BP-300 and antenna)

Display (W × H, approximate)

33 × 27 mm, 1.3 × 1.1 in (viewing area)

Operating temperature range

–30°C to +60°C; –22°F to +140°F

Audio output power
Internal speaker
External speaker


1500 mW typical (At 5% distortion into an 8 Ω load)
1000 mW typical (At 5% distortion into an 8 Ω load)

Battery life (Approximate)

14.5 hours (TX : RX : standby = 5 : 5 : 90)

Talkgroup

15 groups (Maximum)

Antenna connector

SMA

Measurements made in accordance with FCC 47 CFR Part25 & 2, Canada RSS-170&RSS-GEN, EN. All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications & IP Rating

Icom makes rugged products that have been tested to, and passed, the following MIL-STD requirements and strict environmental standards.

Standard

MIL 810 G

Method

Proc

Low Pressure

500.5

I, II

High Temp.

501.5

I, II

Low Temp.

502.5

I, II

Temp. Shock

503.5

I-C

Solar Radiation

505.5

I

Rain Blowing/Drip

506.5

I, II

Humidity

507.5

II

Salt Fog

509.5

Dust Blowing

510.5

I

Immersion

512.5

I

Vibration

514.6

I

Shock

516.6

I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Ingress Protection Standard

Dust & Water

IP67/55/54



Supplied Accessories

  • Battery pack, BP-300

  • Belt clip, MBB-5

  • Antenna, FA-S102U

  • Desktop charger, BC-241

  • AC adapter, BC-242

Antennas

FA-S102U


FA-S102U
AH-40
In-vehicle/
in-building use

AH-40


Battery

BP-300
Li-ion 7.2V 2010mAh

BP-300


Belt Clips

MBB-5

MBB-5


Chargers

BC-241
Rapid charger

BC-241
BC-242
AC adapter

BC-242
BC-214
Six unit gang charger

BC-214
BC-157S
AC adapter

BC-157S
OPC-656
DC Power cable
(BC-214)

OPC-656

BC-247
In-vehicle/
in-building use

BC-247


Headsets

HS-94
Earpiece with boom mic*


hs94 headset
HS-95
Behind-the-head headset
with boom mic*

hs95 headset
HS-97
Earphone with
throat mic headset*

HS-97
VS-5MC
PTT switch cable to use with headset

VS-5MC
*Use w/VS-5MC

VS-3
Bluetooth®

VS-3


Microphones & Earphones

HM-222
Waterproof w/3.5mm jack

HM-222 Waterproof microphone with emergency button

SP-27
3.5mm tube earphone


SP-27
SP-29
3.5mm earhook earphone

SP-29 Earhook Earphone
SP-40
3.5mm earphone


SP-40 3.5mm earphone
SP-AT1
3.5mm earphone

SP-AT1 3.5mm earphone

HM-163MC
Lapel mic w/2.5mm earphone jack


HM-163MC
EH-15B
2.5mm earphone


EH915B
SP-32
Tube earphone
for EH-15B

SP-32




SP-26
2.5mm tube earphone

SP-26
SP-28
2.5mm tube earphone


SP-28


Miscellaneous

AD-118
ACC adapter to use with Hirose plug accessories

AD-118
AD-135
3.5mm earphone jack adapter
(use w/SP-27/SP-29/SP-40/SP-AT1)

AD-135
