AA-30.ZERO Analisador de Antena
The most affordable vector HF antenna analyzer in the world! USB connection & free software. Arduino users: add a vector impedance analyzer and an RF generator to your project!
Why the AA-30.ZERO?
Creating the AA-30.ZERO, we met the numerous wishes of radio amateurs and DIY-hobbyists to give them a measuring tool that can be easily integrated into their own projects. The analyzer is available as a kit to meet this requirement.
Ready for use

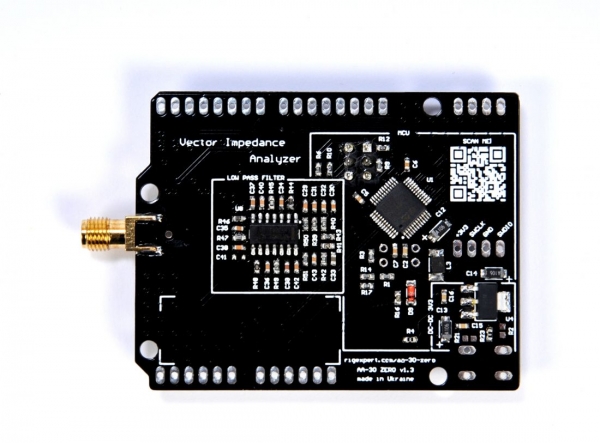

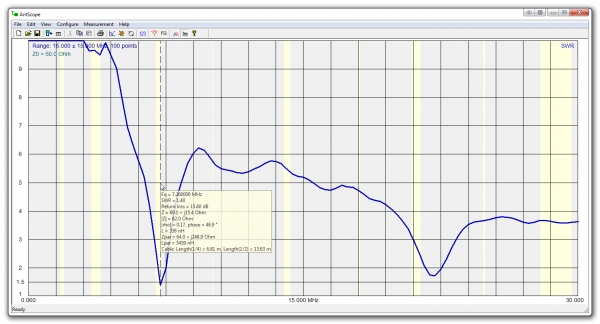

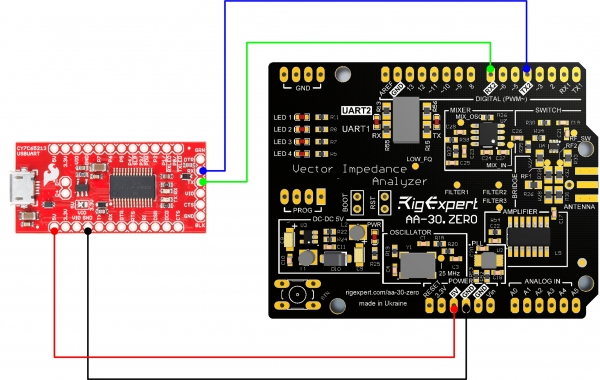

The analyzer has everything necessary on board: users can connect the AA-30.ZERO to their PC (through a USB to UART-TTL adaptor) and perform all usual sets of laboratory measurements, just in five minutes. The AA-30.ZERO is perfectly compatible works our AntScope software.
Do-It-Yourself

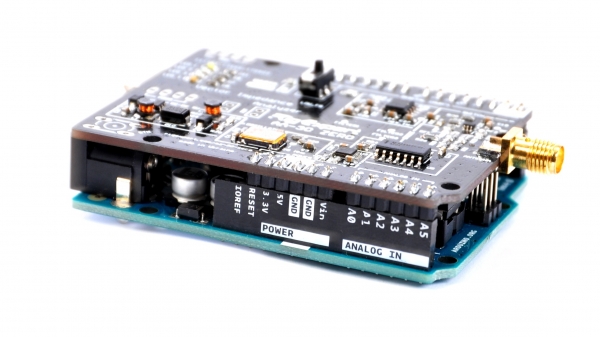

Experienced users may pair the AA-30.ZERO with Arduino boards making their own hardware/software project, since the AA-30.ZERO is compatible with Arduino standards. Also, we have made available several examples of running the AA-30.ZERO in DIY projects.
More ideas:
Want to make your own automatic antenna tuner ? Use the AA-30.ZERO as a replacement for the directional coupler!
Want to perform RF-circuits or antenna analysis remotely ? Pair the AA-30.ZERO with the ESP8266 Wi-Fi SoM and do it easily!
Want to tune your antenna with driven elements? Use the AA-30.ZERO for fine tuning.
price & POWER
There is no chance to find such powerful competitor analyzer for such a low price. With the AA-30.ZERO, dreams of radio amateurs are coming true!
For specifications, connection examples and software, please refer to the menu at the right side of this page.
Specifications
Frequency range: 0.06 to 30 MHz
Frequency entry: 1 Hz resolution
Measurement for 25, 50, 75 and 100-Ohm systems

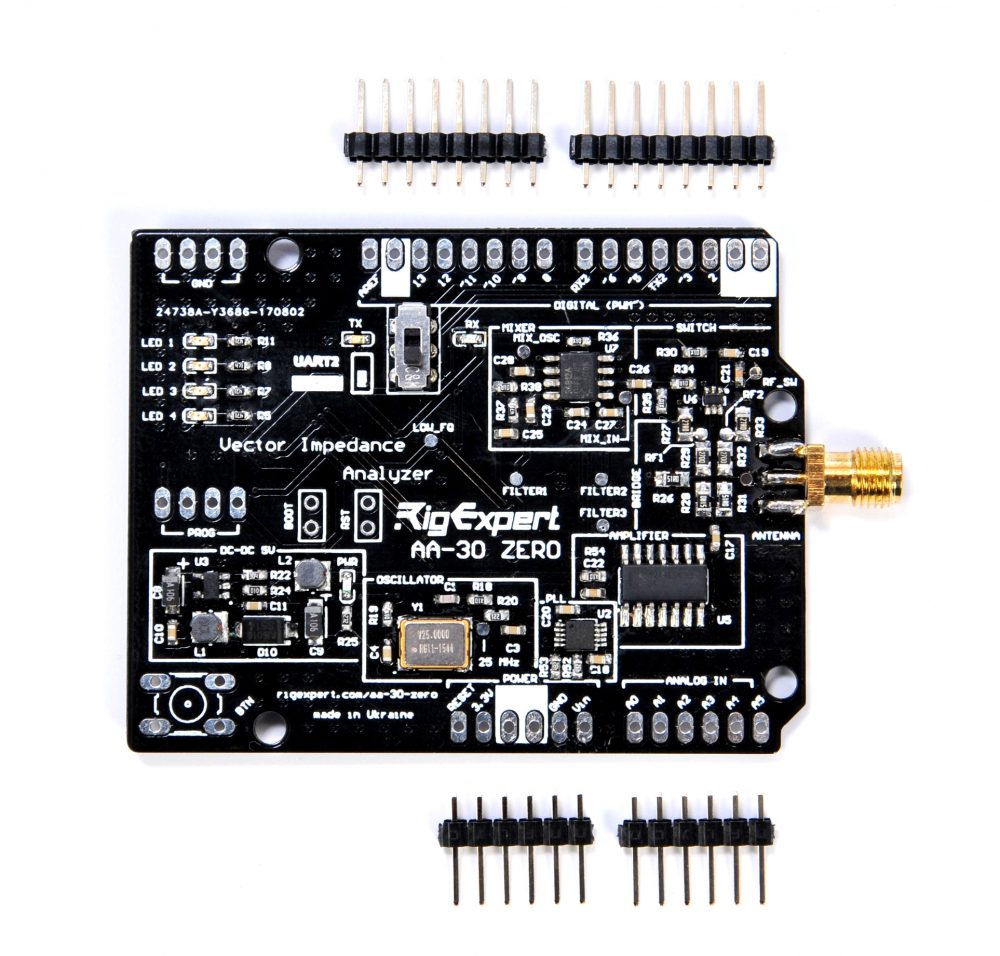

Housing: none, PCB only – available as a kit
Display: 4 LEDs
Communication interface: UART, 38400 baud
SWR measurement range: 1 to 100
R and X range: 0…10000, -10000…10000
RF output
• Connector type: SMA
• Output signal shape: square, 0.06 to 30 MHz
• Output power: +13 dBm (at 50 Ohm load)
Power
• Supply: external 5V
• Current consumption (max) 150 mA
General data
Dimensions (W x H x D), PCB only w/o connectors: 55 mm x 69 mm x 5 mm (2.1 in x 2.7 in x 0.2 in)
Weight w/o connectors: 65 g (2.29 Oz)
Operating temperature: 0…40 °C (32…104 °F)
NOTE: Specifications are subject to change without notice
