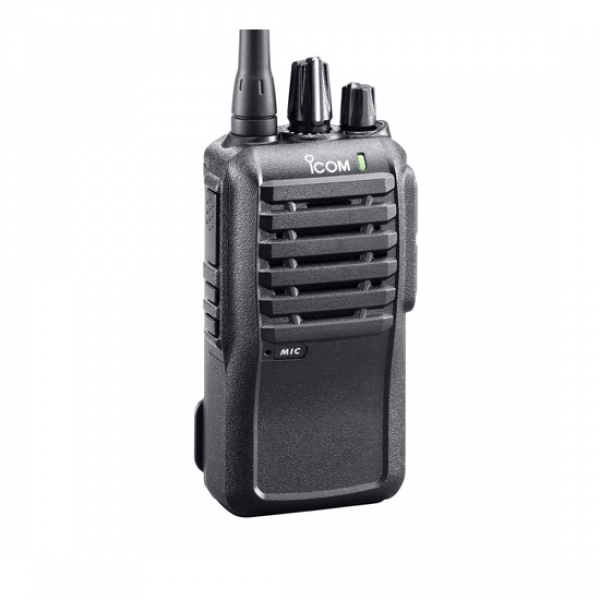

IC-F4001 Entry Level Analog Portables VHF/UHF
Affordable, High Performance Analog Portables
The F3001/F4001 Series is easy to use entry level portable with no special training required. The few knobs and buttons are generously sized for easy operation. This simple interface makes it ideal for high turnover environments and shift work where the radio is constantly passed from person to person. The radio series is ideal to meet the needs of schools, retail, golf courses, community centers and others with similar basic radio needs.
Channels: |
16 | |
Output Power: |
5W (VHF) / 4W (UHF) | |
Frequencies: |
136-174, 400-470 or 450-512MHz | |
Waterproof Rating: |
IP54 | |
Programmable Keys: |
3 |
Hands Free Operation
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.
Built-in Signaling
The F3001 series comes all the popular signaling including 2-Tone, 5-Tone, CTCSS, DTCS and MDC1200 PTT ID & emergency. The radio’s 2-Tone and 5-Tone signaling gives you selective calling, quiet stand-by and other convenient functions with programming. The radio "stun" function disables a radio over the air and the "revive" function restores the stunned radio.
Additional Features
- Priority scan
- DTMF autodial
- Low battery alert
- Talk around function
- Enhanced emergency
- Surveillance function
- 2-step power save
- Time out timer
- Lone worker function
- 3-color LED
Icom Taking it to the Extreme - Rugged Radios for Rugged Terrain
A South American resort implements an Icom repeater and radios for their HeliSkiing operation. Radios featured include the F4001, F50 and F5021.
Specifications
General | ||||
---|---|---|---|---|
Frequency coverage (Rx and Tx) |
F3001
136–174MHz F4001
400-470MHz 450-512MHz |
|||
Number of channels | Total 16 | |||
Type of emissions | 16K0F3E/11K0F3E | |||
Channel spacing | F3001 12.5 kHz, 15/30 kHz F4001 12.5 kHz |
|||
PLL channel step | F3001 2.5 kHz, 3.125 kHz (VHF) F4001 5 kHz, 6.25 kHz (UHF) |
|||
Power supply requirement | 7.2V DC nominal | |||
Current drain |
|
|||
Antenna impedance | 50Ω | |||
Operating temperature range | -30°C to 60°C; –22°F to +140°F | |||
Dimensions (W×H×D) | 2.28 x 4.38 x 1.41 in (with BP-265) | |||
Weight | 9.5 oz (with BP-265) | |||
Transmitter | ||||
Spurious emissions | 70dB typ. | |||
Max. frequency deviation | ±5.0 kHz/±2.5 kHz (wide/narrow) | |||
Frequency stability | ±2.5ppm | |||
FM hum and noise | 46/40dB typ. (wide/narrow) | |||
Output power | 5 W, 2W or 1W (Hi, L2, L1) 4 W, 2W or 1W (Hi, L2, L1) |
|||
Audio harmonic distortion (AF 1kHz 40% deviation) |
1.0/1.5% typ. (wide/narrow) | |||
Ext. microphone connector | 3-conductor 2.5 (d) mm (1/10")/2.2kΩ | |||
Receiver | ||||
Sensitivity | 0.25 µV (typ.) at 12 dB SINAD | |||
Adjacent channel selectivity | 73/65dB typ. (wide/narrow) | |||
Spurious response rejection | 70 dB (typ.) | |||
Intermodulation rejection | 74dB typ. | |||
Hum and noise | 52/47dB typ. (wide/narrow) | |||
Ext. speaker connector | 2-conductor 3.5 (d) mm (1/8") | |||
Audio output power (at 5% distortion) Internal SP (w/12Ω load) External SP (w/8Ω load) |
800mW typ. 400mW typ. |
Measurements made in accordance with EAIA-152-C/204D or TIA-603.
Applicable U.S. Military Specifications
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
Standard | MIL 810 F | |
Method | Proc | |
Low Pressure | 500.4 | I, II |
High Temp. | 501.4 | I, II |
Low Temp. | 502.4-3 | I, II |
Temp. Shock | 503.4 | I |
Solar Radiation | 505.4 | I |
Rain Blowing/Drip | 506.4 | I, III |
Humidity | 507.4 | – |
Salt Fog | 509.4 | – |
Dust Blowing | 510.4 | I |
Vibration | 514.5 | I |
Shock | 516.5 | I, IV |
Also meets equivalent MIL-STD-810-C, -D and -E.
Supplied Accessories
- Battery Pack: BP-265
- Antenna
- Belt Clip: MB-124
- Charger: BC-193
