IC-F1000 Entry & Mid Level Analog Portables VHF/UHF
Compact, Waterproof Analog Portables

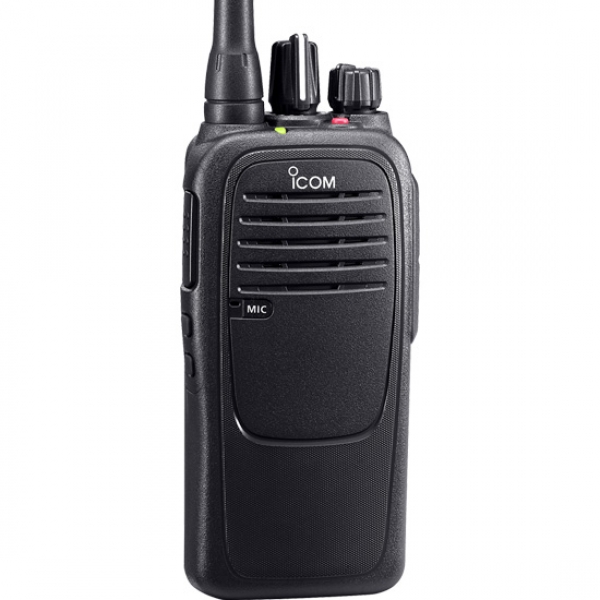

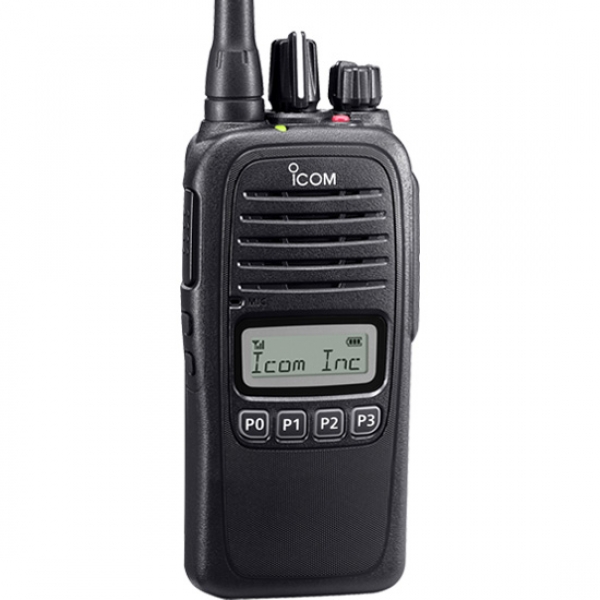

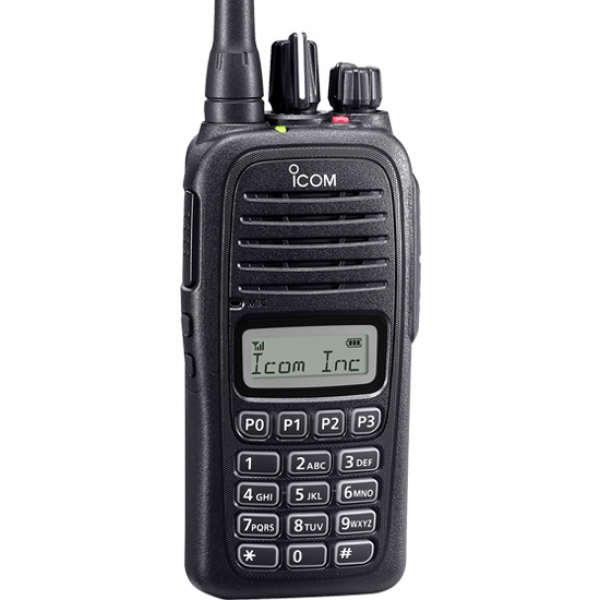

The F1000/F2000 Series is a sleek portable radio that fits nicely in your hand designed to be the go to entry to mid level radio. Three model choices, basic – no display, simple – display with simple keypad, and full – display and fully DTMF keypad, include an array of features such as a built-in motion sensor, channel announcement function, and a rugged waterproof & dustproof chassis. The radio series is ideal to meet the needs of a wide range of businesses such as those involved in the education, hospitality, and retail.
|
Channels: |
16 or 128 channels | |
|
Output Power: |
5W (VHF) / 4W (UHF) | |
|
Frequencies: |
136-174 MHz 400-470 or 450-512 MHz |
|
|
Waterproof Rating: |
IP67 | |
|
Programmable Keys: |
3 or 7 | |
|
Versions: |
No display Display with simple keypad Display with full DTMF keypad |
Built-in Motion Sensor
With a built-in motion sensor, the F1000 series can detect its position, state of motion and non-motion and can send an emergency signal. The motion function detects if the transceiver is moving or shaking, for example, during a chase. The lone worker and man down functions are programmable.
Built-in Signaling
The F1000 series comes all the popular signaling including 2-Tone, 5-Tone, CTCSS and DTCS for group communication and selective calling. MDC features are also programmable including:
- PTT ID
- Emergency (TX/RX)
- Radio check (RX)
- Stun/Revive (RX)
- Up to 100 alias ID numbers or names (LCD types only)
Additional Features
- Built-in voice scrambler
- Channel announcement
- 8 DTMF autodial memories
- "Shift key" function increases number of programmable key assignments
- Surveillance function
Specifications
| General | |||
|---|---|---|---|
|
Frequency coverage (MHz) |
F1000/S/T
136–174MHz F2000/S/T
400-470MHz 450-512MHz |
||
| Number of channels |
F1000
16 channels F1000S/T 128 F2000
16 channels F2000S/T 128 |
||
| Type of emissions | 16K0F3E*/11K0F3E | ||
| Channel spacing | 12.5/25kHz (Not USA Version) | ||
| Power supply requirement | 7.5V DC nominal | ||
| Current drain TX High RX Max. auidio/ Sandby |
|
||
| Antenna impedance | 50Ω | ||
| Operating temperature range | -30°C to 60°C; –22°F to +140°F | ||
| Dimensions (W×H×D) (Projections not included) |
52.2×111.5×24.5mm; 2.06×4.39×0.96 in (With BP-279) | ||
| Weight | 240g; 8.47oz (With BP-279) | ||
| Transmitter | |||
| Output power |
F1000/S/T
5W, 2W, 1W (Hi, L2, L1) F2000/S/T
4W, 2W, 1W (Hi, L2, L1) |
||
| Max. frequency deviation | ± 5.0kHz/±2.5kHz (Wide/Narrow) | ||
| Frequency stability | ±2.5ppm | ||
| Spurious emissions | 70dB min. | ||
| FM hum and noise | 46/40dB typ. (Wide/Narrow) | ||
| Audio harmonic distortion | 1.0%/1.5% typ. (W/N, AF 1kHz 40% deviation) | ||
| Ext. microphone connector | 2-conductor 3.5 (d) mm (1⁄10")⁄2.2kΩ | ||
| Receiver | |||
| Sensitivity (at 12dB SINAD) | 0.25μV typ. | ||
| Adjacent channel selectivity |
F1000/S/T
76/53dB typ. (W/N) F2000/S/T
73/56dB typ. (W/N) |
||
| Spurious response | 70dB min. | ||
| Intermodulation |
F1000/S/T
74dB typ. F2000/S/T
73dB typ. |
||
| Hum and noise |
F1000/S/T
51/45dB typ. (W/N) F2000/S/T
49/43dB typ. (W/N) |
||
| Ext. speaker connector | 2-conductor 3.5 (d) mm (1⁄8")/8Ω | ||
| Audio output power (at 5% distortion) Internal SP (w/12Ω load) External SP (w/8Ω load) |
800mW typ. (at 5% distortion) 400mW typ. (at 5% distortion) |
||
Measurements made in accordance with TIA-603.
All stated specifications are subject to change without notice or obligation.
* 25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.
Ask your dealer if you need 25kHz bandwidth.
Applicable U.S. Military Specifications
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
| Standard | MIL 810 G | |
| Method | Proc | |
| Low Pressure | 500.5 | I, II |
| High Temp. | 501.5 | I, II |
| Low Temp. | 502.5 | I, II |
| Temp. Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standard | |
| Dust & Water | IP67 (Dust-tight and waterproof protection) |
Supplied Accessories
- Battery pack, BP-279
- Belt clip, MB-133
- Antenna, FA-SC55V or FA-SC57U/FA-SC72U
F1000-Brochure-02-15-2019
