IC-F2100D IDAS™ VHF/UHF Portables

Icom

R$ 2.357,75

á vista R$ 2.169,13

Disponibilidade: Sob Encomenda. No momento não possuímos este produto em estoque. Caso você deseje fazer o pedido deste produto o mesmo será fornecido sob encomenda. Por favor, consulte o prazo de entrega pelo e-mail sac@radiohaus.com.br antes de fazer o pagamento

Parcelamento com PagSeguro

1x R$ 2.357,75	2x R$ 1.178,88 (sem juros)
3x R$ 785,92 (sem juros)	4x R$ 589,44 (sem juros)
5x R$ 471,55 (sem juros)	6x R$ 425,90 (com juros)
7x R$ 369,22 (com juros)	8x R$ 326,73 (com juros)
9x R$ 293,71 (com juros)	10x R$ 267,31 (com juros)
11x R$ 245,73 (com juros)	12x R$ 227,77 (com juros)
13x R$ 212,58 (com juros)	14x R$ 199,58 (com juros)
15x R$ 188,33 (com juros)	16x R$ 178,50 (com juros)
17x R$ 169,84 (com juros)	18x R$ 162,15 (com juros)
Juros de 2.35% ao mês - *Parcelamento em 18x disponível para algumas bandeiras de cartão, de acordo com a política do Pagseguro

IC-F2100D IDAS™ VHF/UHF Portables

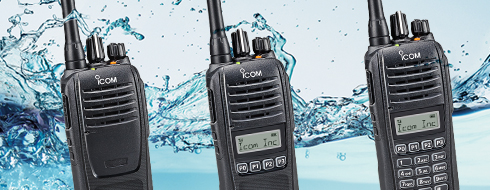

Compact, Waterproof IDAS Portables

The F1100D/F2100D Series is a sleek portable radio that fits nicely in your hand and designed to be the go to entry to mid level digital radio. Three model choices, basic – no display, simple – display with simple keypad, and full – display and fully DTMF keypad, include an array of features such as IDAS digital mode operation in IDAS conventional and multi-site conventional, intelligent emergency functions, and a rugged waterproof & dustproof chassis. A high-power handling capacity speaker and acoustic improvements provide class-leading (1500 mW) loud and clear audio. This radio is ideal to meet the needs of a wide range of businesses including education, hospitality, and retail.

Channels:		16 or 128 channels
Output Power:		5W (VHF & 400-470) / 4W (450-512)
Frequencies:		136-174 MHz 400-470 or 450-512 MHz
Waterproof rating:		IP67
Programmable Keys:		3 or 7

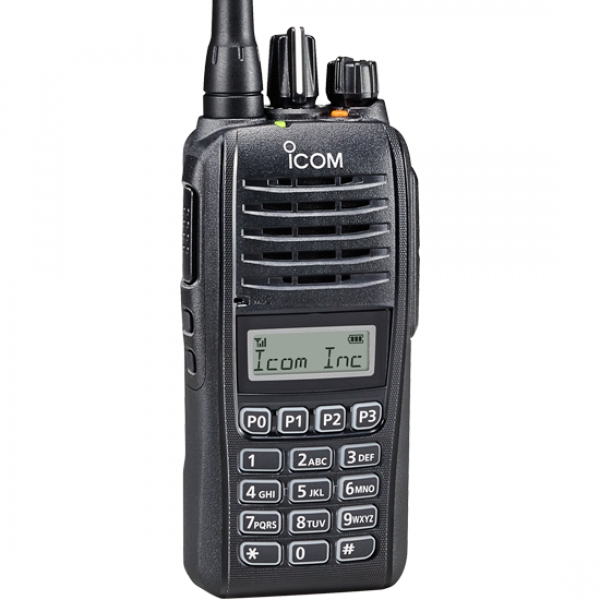

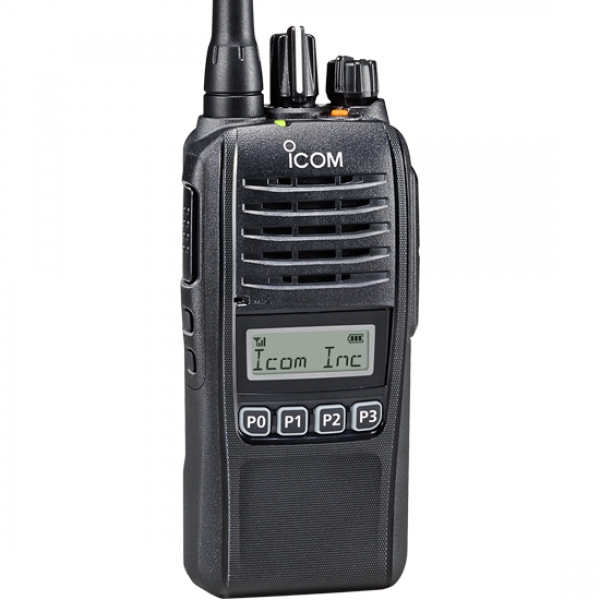

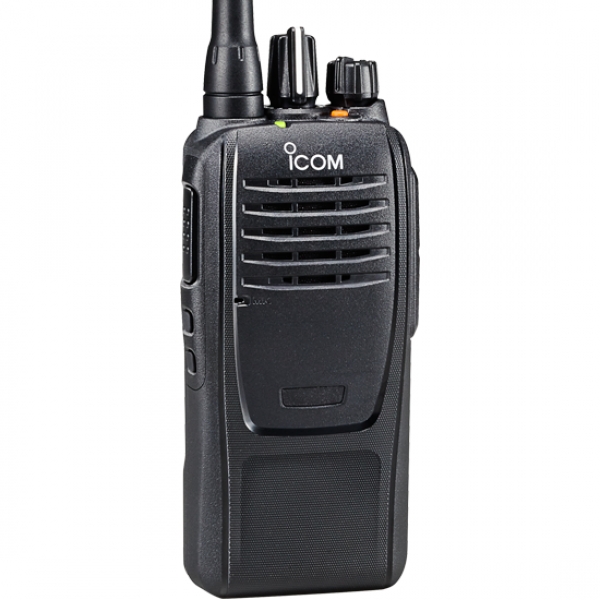

Versions:		No display Display with simple keypad Display with full DTMF keypad

IDAS™ Features

The F1100D series provides NXDN™ CAI-based IDAS digital model operation in IDAS conventional and multi-site conventional. The following IDAS features are available:

IDAS™ Type-D single-site trunking
Analog/digital conventional mixed mode operation
AMBE+2™ vocoder
Over-the-Air updates the Alias list (call list) without programming (LCD versions)
Individual, group and all call
Status all and polling
Short data messages (LCD versions)
Call alert
Radio check (RX only)
The call list can save up to 500 ID numbers for IDAS or MDC1200 signaling system to show in the alias name

Safety & Security Features

For emergency situations the F1100D series includes an emergency key and four emergency functions: man down, motion & stationary detection, lone worker, and surveillance function.

The F1100D Series also includes low-level, 16 bit Digital Voice Encryption.

Built-in Analog Signaling

The F1100 series comes all the popular analog signaling including 2-Tone, 5-Tone, CTCSS and DTCS for group communication and selective calling. MDC features include PTT ID, Emergency (TX/RX), Radio Check (RX), Stun (RX), and Revive (RX).

Additional Features

Channel announcement
Siren sound for security alarm
AquaQuake™ to clear water away from the speaker grill
DTMF auto dial memories
"Shift key" function increase the number of programmable key assignments
Three color LED

Specifications

General

Frequency coverage (MHz)

F1100D/DS/DT
136–174MHz

F2100D/DS/DT
400–470MHz
450–512 MHz

Number of channels

F1100DT/DS
128 channels
8 zones

F1100D
16 channels

F2100DT/DS
128 channels
8 zones

F2100D
16 channels

Type of Emission
Analog:
Digital (IDAS):

11K0F3E
4K0F1D, 4F0F1E

Power supply requirement

7.5V DC nominal

Current drain
TX High
RX Max. auidio/ Sandby

F1100D/DS/DT
1.3 A
520 mA /110 mA
(Max. audio (internal SP)/Standby)

F2100D/DS/DT
1.4 A4
520 mA /110 mA
(Max. audio (internal SP)/Standby)

Antenna impedance

50Ω

Operating temperature range

–30°C to +60°C; –22°F to +140°F (Radio specification)

Dimensions (W×H×D)
(Projections not included)

F1100DS/D, F2100DS/D:
52.2 × 111.8 × 29.4 mm; 2.1 × 4.4 × 1.2 in (With BP-280)

F1100DT, F2100DT:
52.2 × 111.8 × 34.1 mm; 2.1 × 4.4 × 1.3 in (With BP-280)

Weight (With BP-280 & MB-133)

F1100D, F2100D: 260 g; 9.2 oz
F1100DS, F2100DS: 270 g; 9.5 oz
F1100DT, F2100DT: 280 g; 9.9 oz

Transmitter

Output power (Hi, L2, L1)

F1100D/DS/DT
5W, 2W, 1W

F2100D/DS/DT
4W, 2W, 1W

Max. frequency deviation

± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)

Spurious emissions

70dB minimum

Frequency stability

±1.0ppm

Audio harmonic distortion

0.7% typ. (25 kHz), 0.9% typical (20 kHz)
1.0% typical (12.5 kHz) (at AF 1 kHz 40% deviation)

FM Hum and Noise
(without CCITT filter)

F1100D/DS/DT
40 dB typical (12.5 kHz)

F2100D/DS/DT
44 dB typical (12.5 kHz)

Residual modulations
(with CCITT filter)

F1100D/DS/DT
52 dB typical (25 kHz)
50 dB typical (20 kHz)

F2100D/DS/DT
54 dB typical (25 kHz)
52 dB typical (20 kHz),

FSK error

5.0% max.

Ext. microphone connector

3-conductor 2.5 (d) mm (¹⁄10")⁄2.2kΩ

Receiver

Sensitivity
(at 12dB SINAD)

(at 20 dB SINAD)

(at 5% BER)

F1100D/DS/DT
0.21 μV typical

–4 dBμV typical emf

–8 dBμV typical emf
(0.20 μV typical)

F2100D/DS/DT
0.24 μV typical

–5 dBμV typ. emf (25/20 kHz)
–2 dBμV typ. emf (12.5 kHz)

–8 dBμV typical emf
(0.20 μV typical)

Adjacent channel selectivity

F1100D/DS/DT
77 dB typ. (25 kHz)
74 dB typ. (12.5 kHz)
69 dB typ. (12.5 kHz)
59 dB typ. (digital)

F2100D/DS/DT
76 dB typ. (25 kHz)
75 dB typ. (12.5 kHz)
69 dB typ. (12.5 kHz)
58 dB typ. (digital)

Spurious response

80dB typical

Intermodulation rejection

F1100D/DS/DT
75 dB typ. (25/12.5 kHz)
71 dB typ. (digital)

F2100D/DS/DT
77 dB typ. (25/12.5 kHz)
70 dB typ. (digital)

Hum and noise
(With CCITT filter)

(Without CCITT filter)

F1100D/DS/DT
47 dB typ. (25 kHz)
43 dB typ. (12.5 kHz)

52 dB typ. (25 kHz)
50 dB typ. (20 kHz)

F2100D/DS/DT
42 dB typical (12.5 kHz)

50 dB typ. (25 kHz)
48 dB typ. (20 kHz)

AF output power (at 5% distortion)
Internal SP
External SP

1500 mW typical (With an 8 Ω load)
800 mW typical (With an 8 Ω load)

Ext. speaker connector

2-conductor 3.5 (d) mm (1⁄8″)/8Ω

All stated specifications are subject to change without notice or obligation. Measurements made in accordance with TIA-603 (USA/EXP) or EN 300-086, EN 301-166 (EUR). The IC-F1100DT/DS/D VHF versions are under evaluation as of May 2018.

Applicable U.S. Military Specifications & IP Rating

Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.

Standard	MIL 810 G
Standard	Method	Proc
Low Pressure	500.5	I, II
High Temp.	501.5	I, II
Low Temp.	502.5	I, II
Temp. Shock	503.5	I-C
Solar Radiation	505.5	I
Rain Blowing/Drip	506.5	I, III
Humidity	507.5	II
Salt Fog	509.5	–
Dust Blowing	510.5	I
Immersion	512.5	I
Vibration	514.6	I
Shock	516.6	I, IV
