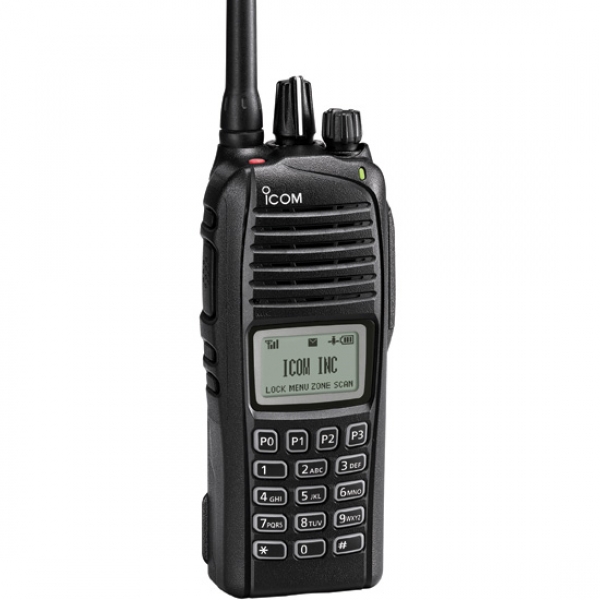

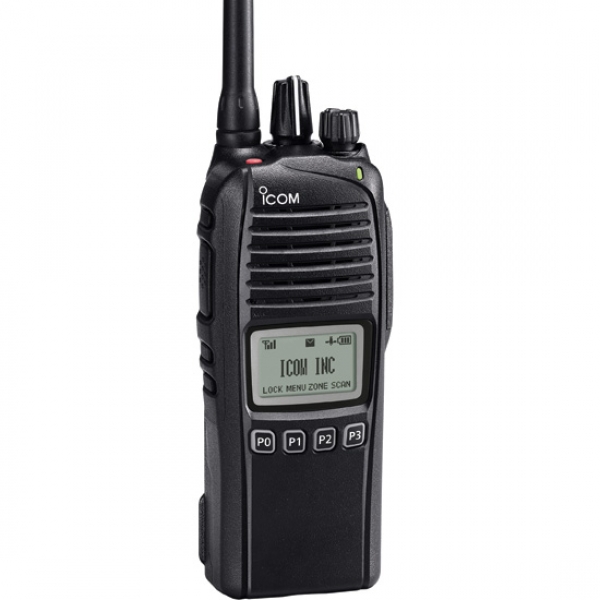

IC-F3360D IDAS™ Type-C Trunking Portables VHF/UHF
Ready for NXDN™ Type-C Trunking with Superior Waterproof Protection
Type-C Trunking Compatible
The IC-F3360D series provides NXDN™ Type-C trunking and NXDN™ conventional systems.
- Paging call
- All call
- Individual call
- Text message
- Stun, Kill and Revive (RX)
- Over-the-air alias
- 15-bit digital scrambler
- Mixed mode operation (Conventional system)
- Broadcast call
- Group call
- Status call
- Emergency call
- Radio check (RX)
- GPS
- RAN
Menu-Driven User Interface
The menu-driven user interface provides easy and intuitive operation. The functions can be toggled with the left and right [P2] and [P3] buttons and allow you to perform various operations and settings.
Built-in GPS Receiver
Your current position data can be attached to a voice or data (status or emergency signal) transmission and can be sentto dispatch stations.
Man Down & Lone Worker
The man down function sends an emergency signal if left in a horizontal position. The lone worker function detects if the transceiver is not operated or not moved for a preset period.
Transparent Data
When IC-F3360D series is connected to a PC or other external equipment, the transparent data function allows data communication in a digital mode.
IP67 Dust-Tight & Waterproof
The IC-F3360D series provides rugged protection against dust and water. The transceiver can with stand 1m depth of water for 30 minutes.
800mW (typ.) Audio Output
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud 800mW (typ.) audio to receive all calls under noisy environments.
Other Features
- 512 memory channels with 128 zones
- CTCSS/DTCS/DTMF encoder/decoder*
- MDC 1200 PTT ID transmission*
- Inversion voice scrambler*
- Audio compander*
Specifications
| General | |||
|---|---|---|---|
| Frequency coverage |
F3360DT/DS
136–174MHz F4360DT/DS
400-470MHz |
||
| Number of channels | 512 channels/128 zones | ||
| Type of emissions | 8K50F3E, 8K30F1E/F1D, 4K00F1E/F1D | ||
| Channel spacing | 15/12.5/6.25kHz | ||
| Power supply requirement | 7.5V DC nominal | ||
| Current drain TX High RX Max. auidio/ Sandby |
|
||
| Antenna impedance | 50Ω | ||
| Operating temperature range | -30°C to 60°C; –22°F to +140°F | ||
| Dimensions (W×H×D) (Projections not included) |
53.5×142.7×39.5 mm; 2.11×5.62×1.56 in (With BP-232WP) | ||
| Weight | 400g; 14.1oz (With BP-232WP, MB-94R & FA-SC57U) | ||
| Transmitter | |||
| Output power | 5W, 1W (Hi, Low) | ||
| Max. frequency deviation | ±2.5kHz (Narrow) | ||
| Frequency stability | ±1.0ppm | ||
| Spurious emissions | 75dB typ. | ||
| FM hum and noise |
F3360DT/DS
50dB typ. (Narrow) F4360DT/DS
45dB typ. (Narrow) |
||
| AAudio harmonic distortion | 1.5% typ. (AF 1kHz 40% deviation) | ||
| FSK error | 1% typ. (Digital 6.25/12.5kHz) | ||
| Ext. microphone connector | 14-pin multi-connector/2.2kΩ | ||
| Receiver | |||
| Sensitivity Analog Digitlal |
0.24μV typ. (at 12dB SINAD) –8.0dBμV emf typ. (at 5% BER) |
||
| Adjacent channel selectivity | 68/67/59dB typ. (Narrow/D 12.5kHz/D 6.25kHz) | ||
| Spurious response | 80dB min. | ||
| Intermodulation | 75/70/70dB typ. (Narrow/D 12.5kHz/D 6.25kHz) | ||
| Hum and noise |
F3360DT/DS
50dB typ. (Narrow) F4360DT/DS
48dB typ. (Narrow) |
||
| Ext. speaker connector | 14-pin multi-connector/8Ω | ||
| Audio output power (at 5% distortion) | 800mW typ. (Internal SP, 12Ω load) 1000mW typ. (External SP, 8Ω load) |
||
Measurements made in accordance with TIA-603, EN 301-166 and EN 300-113. All stated
specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
| Standard | MIL 810 G | |
| Method | Proc | |
| Low Pressure | 500.5 | I, II |
| High Temp. | 501.5 | I, II |
| Low Temp. | 502.5 | I, II |
| Temp. Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standard (F3360D/F4360D, BP-232WP and HM-184) | |
| Dust & Water | IP67 (Dust-tight and waterproof protection) |
AAG-idas-portables-final-11-17 (3)
