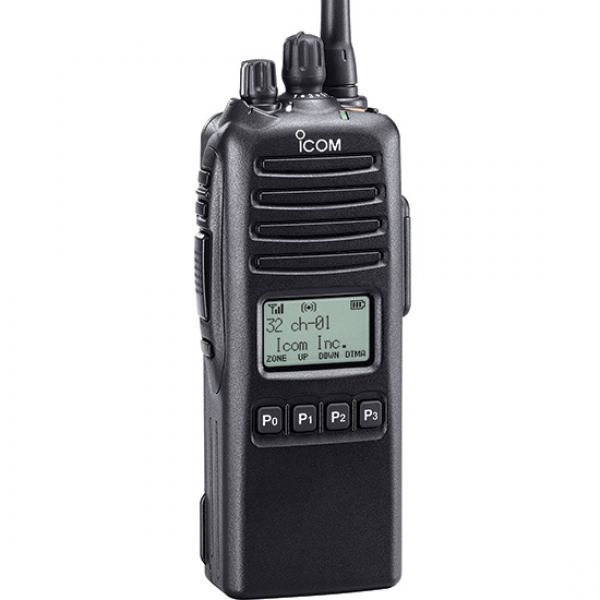

IC-F70D P25 Conventional UHF/VHF Portables
Icom
IC-F70D P25 Conventional UHF/VHF Portables
The Smart Migration to an APCO P25 Digital Radio System
|
Channels: |
256 channels w/32 zones | |
|
Output Power: |
5W (VHF) 4W (UHF) | |
|
Frequencies: |
380-450MHz | |
|
Waterproof Rating: |
IP67 | |
|
Programmable Keys: |
7 | |
|
Versions: |
UHF with limited keypad and FIPS AES built-in |
Built-in Multiple Signaling
The 2-Tone, 5-Tone, CTCSS, DTCS and MDC signaling capabilities are built-in for group communication or selective calling.
Up to 10 2-Tone and 8 5-Tone codes can be decoded on a single memory channel. This is perfect for professionals who require multiple district paging on one channel. When a matched tone is received, the following items are programmable for each code.
- Bell icon
- Answer back
- Stun
- Beep sound
- Auto transmit
- Scan
The following selective calling and ANI features are available with the built-in MDC signaling.
- PTT ID/Caller ID
- Radio check
- Selective call
- Call alert
- Emergency, emergency mic monitoring
- Emergency man down (with UT-124)
- Radio stun/revive
- 500 Aliases
- Status/message
- Call log
Alphanumeric Display
The large high contrast LCD clearly shows a variety of information with a full dot-matrix display. Program the display to show either 1 line with 12 characters or 2 lines with 24 characters. Status icons are displayed at the top and the functions assigned to the P buttons (P0P3) are shown at the bottom of the display.
The bottom of the LCD shows the assigned functions (see right)
Tactical Group Function
The tactical group function allows you to copy memory channels to the tactical zone (zone 32) and dynamically regroup memory channels. Using the optional zone copy cable, memory channels in the tactical zone can be transferred from a master radio to other radios.
FIPS 140-2
The F80DS includes FIPS 140-2 validation, which confirms that the Icom encryption module, Icom AES Encryption, has passed rigorous field tests and provides agencies the independent assurance that the module meets or exceeds the highest performance standards in encryption for its classification. FIPS encryption is a requirement for many federal agencies.
Additional Features
- Built-in inversion voice scrambler
- Radio stun/kill function disables a lost or stolen radio over the air
- Built-in audio compander
- 8 DTMF autodix xal memories
- Normal and priority scans
- Power-on password prevents unauthorized people turning on the radio
Specifications
| General | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Frequency range | 380-450MHz | ||||||||||||||||||||||
| Number of channels | 256 channels / 32 zones | ||||||||||||||||||||||
| Channel spacing | 12.5 kHz / 25 kHz, 15 kHz / 30 kHz | ||||||||||||||||||||||
| PLL channel step |
2.5 kHz, 3.125 kHz (VHF) 5 kHz, 6.25 kHz (UHF) |
||||||||||||||||||||||
| Antenna impedance | 50Ω | ||||||||||||||||||||||
| Usable temperature range |
-30°C to +60°C; -22°F to +140°F |
||||||||||||||||||||||
| Power supply requirement | 7.2V DC | ||||||||||||||||||||||
| Output power and current drain (at 7.2V DC; approx.) |
|
||||||||||||||||||||||
| Dimensions (with battery pack) (Projections not included) |
58.6 (W) × 152 (H) × 38 (D) mm; 25/16 (W) × 531/32 (H) × 11/2 (D) in |
||||||||||||||||||||||
| Weight (approx.) |
14.1oz (with BP-253) 15.9oz (with BP-254) |
||||||||||||||||||||||
| Transmitter | |
|---|---|
| Max. freq. deviation |
±5.0 kHz (Wide) +2.5 kHz (Narrow) |
| Frequency Error | ±2.0ppm |
| Spurious emissions | 70dB typ. |
| Adjacent channel power | 70dB/60dB min. (Wide/narrow) |
|
FM Hum and Noise VHF UHF |
45/40dB typ. (Wide/narrow) 40/35dB typ. (Wide/narrow) |
| Audio harmonic distortion | 3% typ. (AF 1 kHz, 40% deviation) |
| Modulation limiting | 60-100% of max. deviation |
| Ext. Microphone connector | 9-pin multi connector / 2.2kΩ |
| Receiver | |
|---|---|
| Intermediate freq. |
1st 46.35 2nd 450 kHz |
|
Sensitivity (typical) Analog (12dB SINAD) Digital (5% BER) |
0.25µV typ. 0.25µV typ. |
|
Squelch sensitivity VHF UHF |
0.25µV typ. 0.32µV typ. |
|
Adjacent Channel Selectivity Digital VHF / UHF |
80/73dB typ. (Wide/narrow) 78/70dB typ (Wide/narrow) 60dB typ. |
|
Spurious response |
80dB/75dB typ. (VHF/UHF) |
| Intermodulation | 75dB (typ.) |
| Hum and noise ratio | 45/40dB typ. (Wide/narrow) |
| Audio output power | 500mW (at 10% distortion with an 8Ω load) |
| Ext. speaker connector | 9-pin multi connector / 8Ω |
Applicable U.S. Military Specifications
| Standard | MIL 810 C | MIL 810 D | MIL 810 E | MIL 810 F | ||||
| Method | Proc | Method | Proc | Method | Proc | Method | Proc | |
| Low Pressure | 500.1 | I | 500.2 | I, II | 500.3 | I, II | 500.4 | I, II |
| High Temp. | 501.1 | I | 501.2 | I, II | 501.3 | I, II | 501.4 | I, II |
| Low Temp. | 502.1 | I | 502.2 | I, II | 502.3 | I, II | 502.4 | I, II |
| Temp. Shock | 503.1 | I | 503.2 | I | 503.3 | I | 503.4 | I |
| Solar Radiation | 505.1 | I | 505.2 | I | 505.3 | I | 505.4 | I |
| Rain | 506.1 | I, II | 506.2 | I, II | 506.3 | I, II | 506.4 | I, II |
| Humidity | 507.1 | I, II | 507.2 | II, III | 507.3 | II, III | 507.4 | – |
| Salt Fog | 509.1 | I | 509.2 | I | 509.3 | I | 509.4 | – |
| Dust Blowing | 510.1 | I | 510.2 | I | 510.3 | I | 510.4 | I |
| Immersion | 512.1 | I | 512.2 | I | 512.3 | I | 512.4 | I |
| Vibration | 514.2 | VIII, X | 514.3 | I | 514.4 | I | 514.5 | I |
| Shock | 516.2 | I, II, V | 516.3 | I, IV | 516.4 | I, IV | 516.5 | I, IV |
Measurements made in accordance with EIA-152C/204D, TIA-603. All stated specifications are subject to change without notice or obligation.
Supplied Acessories
- Antenna
- Belt Clip, MB-94
- Battery pack, BP-254
