IC-F80D P25 Conventional UHF/VHF Portables

Icom

R$ 7.485,40

á vista R$ 6.886,57

Disponibilidade: Sob Encomenda. No momento não possuímos este produto em estoque. Caso você deseje fazer o pedido deste produto o mesmo será fornecido sob encomenda. Por favor, consulte o prazo de entrega pelo e-mail sac@radiohaus.com.br antes de fazer o pagamento

Parcelamento com PagSeguro

1x R$ 7.485,40	2x R$ 3.742,70 (sem juros)
3x R$ 2.495,13 (sem juros)	4x R$ 1.871,35 (sem juros)
5x R$ 1.497,08 (sem juros)	6x R$ 1.352,16 (com juros)
7x R$ 1.172,19 (com juros)	8x R$ 1.037,30 (com juros)
9x R$ 932,46 (com juros)	10x R$ 848,66 (com juros)
11x R$ 780,15 (com juros)	12x R$ 723,12 (com juros)
13x R$ 674,91 (com juros)	14x R$ 633,64 (com juros)
15x R$ 597,92 (com juros)	16x R$ 566,70 (com juros)
17x R$ 539,20 (com juros)	18x R$ 514,79 (com juros)
Juros de 2.35% ao mês - *Parcelamento em 18x disponível para algumas bandeiras de cartão, de acordo com a política do Pagseguro

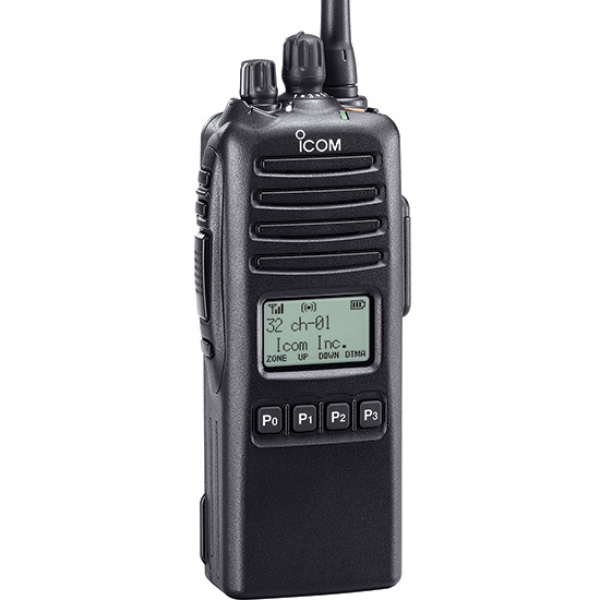

IC-F80D P25 Conventional UHF/VHF Portables

The Smart Migration to an APCO P25 Digital Radio System

Channels:		256 channels w/32 zones
Output Power:		5W (VHF) 4W (UHF)
Frequencies:		380-450MHz
Waterproof Rating:		IP67
Programmable Keys:		7
Versions:		UHF with limited keypad and FIPS AES built-in

Built-in Multiple Signaling

The 2-Tone, 5-Tone, CTCSS, DTCS and MDC signaling capabilities are built-in for group communication or selective calling.

Up to 10 2-Tone and 8 5-Tone codes can be decoded on a single memory channel. This is perfect for professionals who require multiple district paging on one channel. When a matched tone is received, the following items are programmable for each code.

Bell icon
Answer back
Stun
Beep sound
Auto transmit
Scan

The following selective calling and ANI features are available with the built-in MDC signaling.

PTT ID/Caller ID
Radio check
Selective call
Call alert
Emergency, emergency mic monitoring
Emergency man down (with UT-124)
Radio stun/revive
500 Aliases
Status/message
Call log

Display Alphanumeric Display

The large high contrast LCD clearly shows a variety of information with a full dot-matrix display. Program the display to show either 1 line with 12 characters or 2 lines with 24 characters. Status icons are displayed at the top and the functions assigned to the P buttons (P0P3) are shown at the bottom of the display.
The bottom of the LCD shows the assigned functions (see right)

Tactical Group Function

The tactical group function allows you to copy memory channels to the tactical zone (zone 32) and dynamically regroup memory channels. Using the optional zone copy cable, memory channels in the tactical zone can be transferred from a master radio to other radios.

FIPS 140-2

The F80DS includes FIPS 140-2 validation, which confirms that the Icom encryption module, Icom AES Encryption, has passed rigorous field tests and provides agencies the independent assurance that the module meets or exceeds the highest performance standards in encryption for its classification. FIPS encryption is a requirement for many federal agencies.

Additional Features

Built-in inversion voice scrambler
Radio stun/kill function disables a lost or stolen radio over the air
Built-in audio compander
8 DTMF autodix xal memories
Normal and priority scans
Power-on password prevents unauthorized people turning on the radio

Specifications

General

Frequency range

380-450MHz

Number of channels

256 channels / 32 zones

Channel spacing

12.5 kHz / 25 kHz, 15 kHz / 30 kHz

PLL channel step

2.5 kHz, 3.125 kHz (VHF)

5 kHz, 6.25 kHz (UHF)

Antenna impedance

50Ω

Usable temperature range

-30°C to +60°C;

-22°F to +140°F

Power supply requirement

7.2V DC

Output power and current drain
(at 7.2V DC; approx.)

		IC-F70, F70D	IC-F80, F80D
Output Power		5W	4W
Transmit	High	2.2A	2.4A
Transmit	Low (1W)	1.5A	1.5A
Receive	AF Max.	450mA	450mA
Receive	stand-by	150mA	150mA

Dimensions (with battery pack) (Projections not included)

58.6 (W) × 152 (H) × 38 (D) mm;

2⁵/₁₆ (W) × 5³¹/₃₂ (H) × 1¹/₂ (D) in

Weight (approx.)

14.1oz (with BP-253)

15.9oz (with BP-254)

Transmitter
Max. freq. deviation	±5.0 kHz (Wide) +2.5 kHz (Narrow)
Frequency Error	±2.0ppm
Spurious emissions	70dB typ.
Adjacent channel power	70dB/60dB min. (Wide/narrow)
FM Hum and Noise VHF UHF	45/40dB typ. (Wide/narrow) 40/35dB typ. (Wide/narrow)
Audio harmonic distortion	3% typ. (AF 1 kHz, 40% deviation)
Modulation limiting	60-100% of max. deviation
Ext. Microphone connector	9-pin multi connector / 2.2kΩ

Receiver
Intermediate freq.	1st 46.35 2nd 450 kHz
Sensitivity (typical) Analog (12dB SINAD) Digital (5% BER)	0.25µV typ. 0.25µV typ.
Squelch sensitivity VHF UHF	0.25µV typ. 0.32µV typ.
Adjacent Channel Selectivity Analog VHF Analog UHF Digital VHF / UHF	80/73dB typ. (Wide/narrow) 78/70dB typ (Wide/narrow) 60dB typ.
Spurious response	80dB/75dB typ. (VHF/UHF)
Intermodulation	75dB (typ.)
Hum and noise ratio	45/40dB typ. (Wide/narrow)
Audio output power	500mW (at 10% distortion with an 8Ω load)
Ext. speaker connector	9-pin multi connector / 8Ω

Applicable U.S. Military Specifications

Standard	MIL 810 C		MIL 810 D		MIL 810 E		MIL 810 F
Standard	Method	Proc	Method	Proc	Method	Proc	Method	Proc
Low Pressure	500.1	I	500.2	I, II	500.3	I, II	500.4	I, II
High Temp.	501.1	I	501.2	I, II	501.3	I, II	501.4	I, II
Low Temp.	502.1	I	502.2	I, II	502.3	I, II	502.4	I, II
Temp. Shock	503.1	I	503.2	I	503.3	I	503.4	I
Solar Radiation	505.1	I	505.2	I	505.3	I	505.4	I
Rain	506.1	I, II	506.2	I, II	506.3	I, II	506.4	I, II
Humidity	507.1	I, II	507.2	II, III	507.3	II, III	507.4	–
Salt Fog	509.1	I	509.2	I	509.3	I	509.4	–
Dust Blowing	510.1	I	510.2	I	510.3	I	510.4	I
Immersion	512.1	I	512.2	I	512.3	I	512.4	I
Vibration	514.2	VIII, X	514.3	I	514.4	I	514.5	I
Shock	516.2	I, II, V	516.3	I, IV	516.4	I, IV	516.5	I, IV
