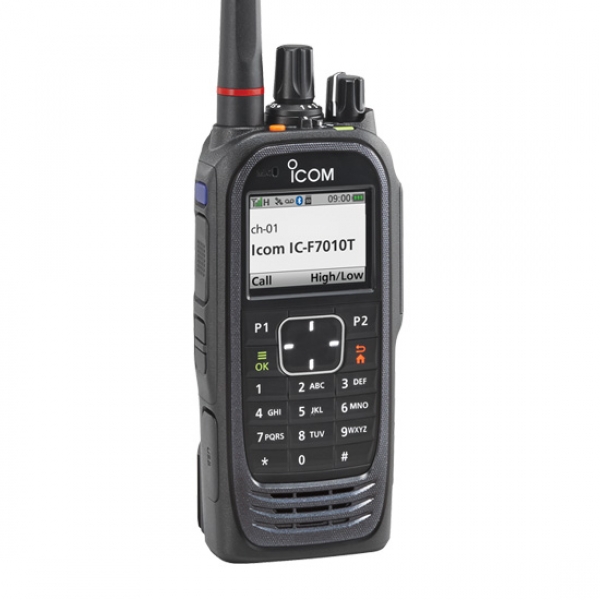

The F7000 series P25 portables support the ever-advancing P25 standard. The needs for both public service and public safety organizations are also addressed with these radios. Icom’s third generation of this product not only captures the essentials, but offers dozens of new features and functions all in one new small form factor size. Public service and public safety organizations will like the built-in SD Card, GPS, USB interface, Bluetooth®, and color display. Activation options for trunking, OTAR, OTAP and more, allow for expanded or upgraded services without burdening the user with unnecessary features. Icom is the choice when you want to take your P25 communications to the next level.

Intuitive User Interface

The high-resolution color LCD enhances the visibility both in natural and indoor lighting. Clearly labeled function and menu items make it easy to understand icons and characters. The night mode LCD setting is an alternative for use in night time or low lighting conditions. The glass is scratch resistant to protect from cracks and scratches.

Day mode

Night mode

P25 Features

• P25 Phase 1 conventional
• P25 Phase 1 trunking and Phase 2 trunking optional licenses
• P25 voting scan (P25 conventional mode) optional license
• Enhanced dual-rate Vocoder, AMBE+2™
• Analog/digital mixed operation
• Over-the-Air Programming (OTAP) optional license
• Individual and group call
• Unit ID and talkgroup display on receive
• Status update and status query
• Short data message (up to 100 characters)
• GPS position and transparent data transmission optional license
• Call alert
• Phone number list
• Call log

Digital Voice Recorder

The F7000 series can record incoming and outgoing communications, and replay recorded communications. Add a 32GB microSD card and record up to 500 hours. The recorded audio is saved in "wav" format and allows user to replay on the radio or a PC. Users can optionally overwrite first call in first call out, if the card is full. The recording captures timestamp and individual or group ID. Unit ID is captured on individually calls and group ID is captured on group calls. Users can also scroll to playback calls on the radio.

Safety Features

For emergency situations the F7000 series includes an emergency button and five emergency functions: man down, motion detection, stationary detection, lone worker and power OFF emergency. The motion/stationary sensor sensitivity level is programmable in 10 levels for each function.

Additional Features

• FIPS 140 Level 1 AES with Over-the-air Rekeying (OTAR) optional license and board
• Front panel programming optional license
• Hands-free communication with built-in Bluetooth®
• Tile designed keypad increases durability and visibility
• AquaQuake™ draining function to maintain clear audio
• Channel voice announcement
• USB port to connect to a PC
• Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog
• 14-pin ACC connector with BTL amplifier output
• TX/RX active noise canceller
• TX/RX audio equalizer
