Eclipse Series GX1400 25W Fixed Mount VHF
Yaesu Standard Horizon

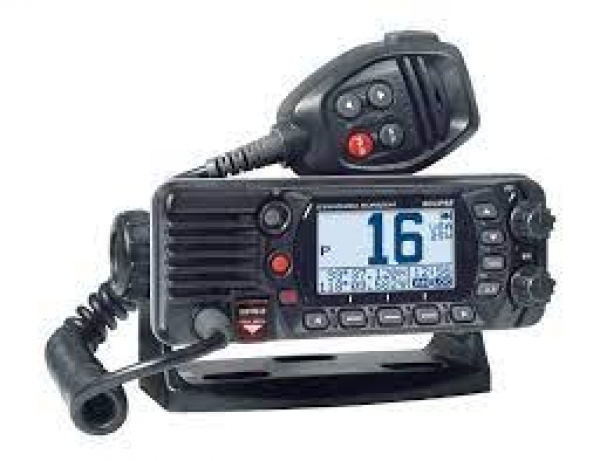

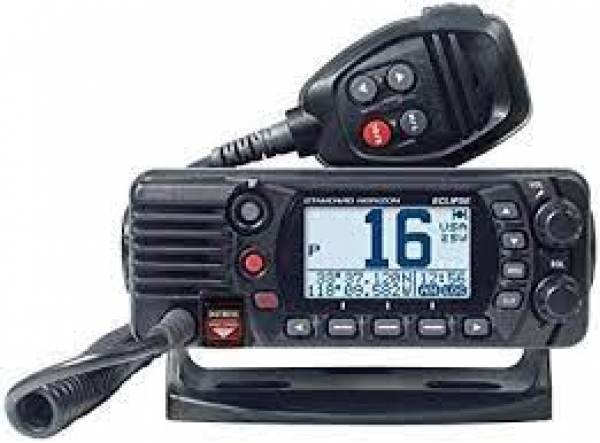

Eclipse Series GX1400 25W Fixed Mount VHF
ITU-R M493-13 Class D Digital Selective Calling
The GX1400 Eclipse Series is an ITU-R M493-13 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications.New Dot Matrix Display High resolution dot matrix display makes navigating the radios many features smooth and easy. Now with a new brighter backlight for better display contrastE2O Easy to Operate Menu System Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.3-Year Waterproof Warranty If your Eclipse Series radio fails for any reason (including water damage) during normal use for the first 3 years of ownership, STANDARD HORIZON will repair or replace it free, without hassles or charges. If it fails for anytime thereafter in normal use, for as long as the original purchaser owns the radio, STANDARD Horizon's Lifetime Flat Rate and Customer Loyalty Service Programs will cover it. |
SPECIFICATIONS
Performance specifications are nominal, unless otherwise indicated, and are subject to change without notice. Measured in accordance with TIA/EIA-603.
GENERAL Channels
............................................... All USA, International and Canadian Normal Input Voltage ............................................................ 13.8 VDC ±20% Current Drain Standby ............................................................................................. 0.3 A Receive (at Maximum AF Output) ...................................................... 1.2 A Transmit ..................................................................... 5.0 A (Hi); 1.0 A (Lo) DSC Transmitted Call Log .......................................................................... 30 DSC Distress Call Log ................................................................................ 30 DSC Received Call Log .............................................................................. 50 Individual Directory ..................................................................................... 60 Group Directory .......................................................................................... 30 Display Type ............................................................. 2.6” x 1.4” (55 x 31 mm) Full Dot Matrix (102 x 56 pixels) Dimensions (W x H x D) .................... 6.14" x 2.40" x 3.94" (156 x 61 x 100 mm) Flush-Mount Dimensions (W x H x D) ... 5.16" x 1.97" x 4.72" (131 x 50 x 120 mm) Weight ................................................................................... 1.76 lbs (800 g)
TRANSMITTER
Frequency Range .................. 156.025 MHz to 161.600 MHz (Inter National) RF Output ........................................................................ 25 W (Hi); 1 W (Lo) Conducted Spurious Emissions ............... Less than –80 dB (Hi); –66 dB (Lo) Audio Response ............................................... within +1/–3 of a 6 dB/octave pre-emphasis characteristic at 300 to 3000 Hz Audio Distortion ........................................................................ Less than 5 % Modulation .................................. 16K0G3E (for Voice), 16K0G2B (for DSC) Frequency Stability ............... ±0.0003 % (–4°F to +140°F (–20°C to +60°C)) FM Hum and Noise ................................................................................ 50 dB
RECEIVER
Frequency Range .................................................... 156.050 to 163.275 MHz Sensitivity 20 dB Quieting .............................................................................. 0.30 µV 12 dB SINAD ................................................................................ 0.25 µV Squelch Sensitivity (Threshold) .................................................... 0.13 µV Modulation Acceptance Bandwidth ................................................... ±7.5 kHz 87 Selectivity (Typical) Spurious and Image Rejection ............... 75 dB for Voice (70 dB for DSC) Intermodulation and Rejection ................ 70 dB for Voice (70 dB for DSC) Audio Output ................................ 4.5 W (at 4 ohms external speaker output) Audio Response .............................................. within + 1/–3 of a 6 dB/octave de-emphasis characteristic at 300 to 3000 Hz Frequency Stability (–4°F to +140°F (–20°C to +60°C))..................±0.0003 % Channel Spacing ................................................................................. 25 kHz DSC Format .......................................................................... ITU-R M.493-13 (European version: Meets ITU-R M493-14)
INTERNAL GPS RECEIVER (GX1400GPS and GX1400GPS/E only)
Receiver Channels ..................................................................... 66 Channels Sensitivity ...................................................................... Less than –147 dBm Time to First Fix .............................................. 1 minute typical (@Cold Start) 5 seconds typical (@ Hot Start) Geodetic Datum ................................................................................. WGS84
NMEA 0183 INPUT/OUTPUT Sentences
4800 Baud selected: NMEA 0183 Input (4800 baud) ............ GGA, GLL, GNS, RMC, GSA, & GSV NMEA 0183 Output (4800 baud) ................. DSC, DSE, GGA*, GLL*, GNS*, RMC*, GSA* & GSV* 38400 Baud selected: NMEA 0183-HS Input (38400 baud) ... GGA, GLL, GNS, RMC, GSA, & GSV NMEA 0183-HS Output (38400 baud) ......... DSC, DSE, GGA*, GLL*, GNS*, RMC*, GSA* & GSV*
Manual do Produto em Inglês
