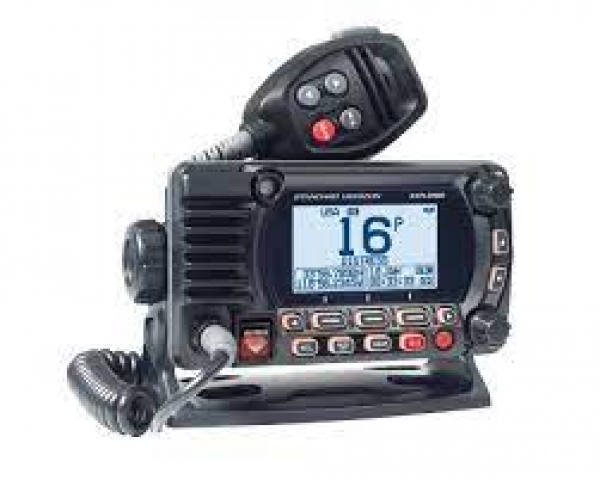

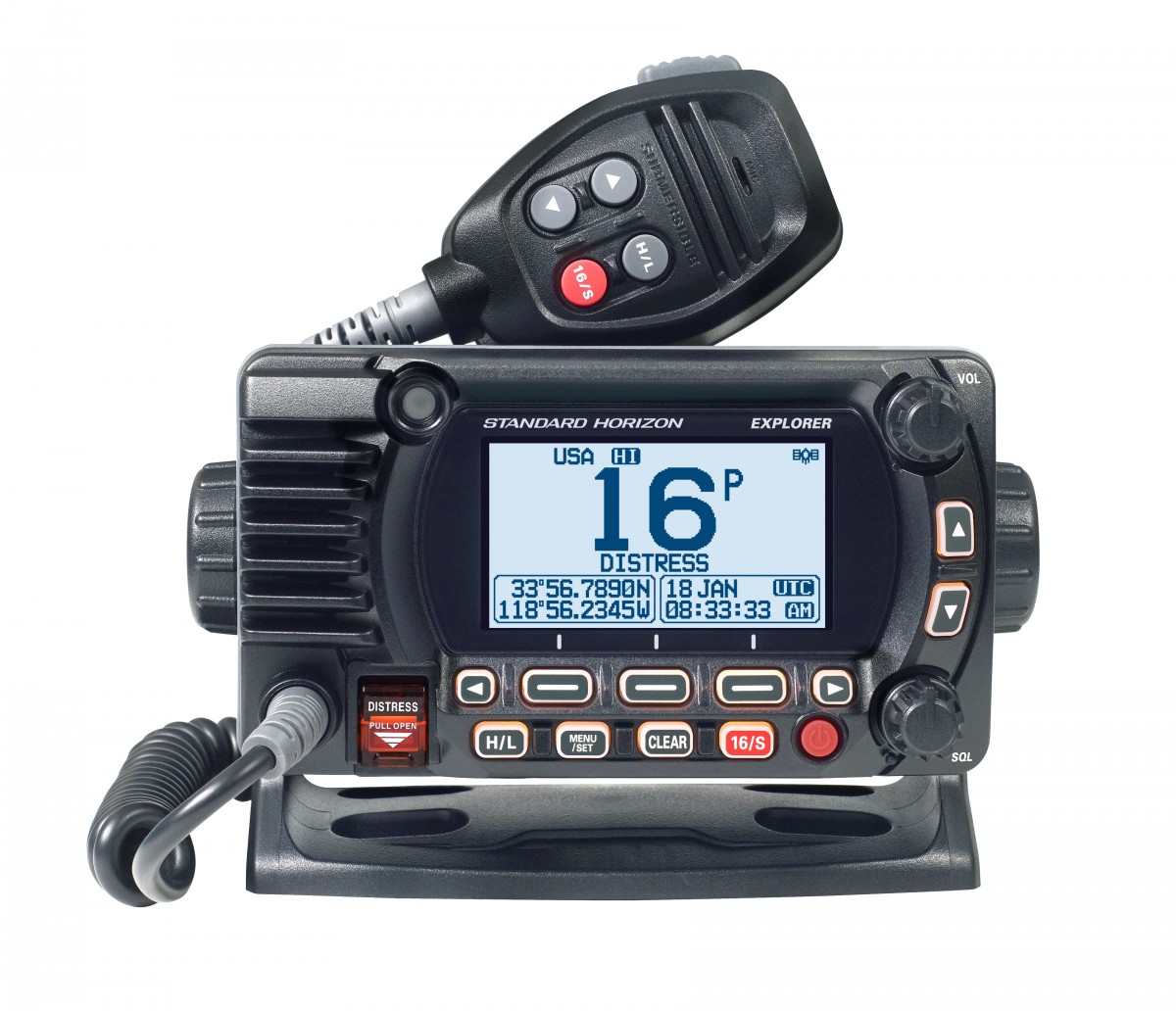

Explorer Series GX1800 25W Fixed Mount VHF / Second Station Capable
Yaesu Standard Horizon
Explorer Series GX1800 25W Fixed Mount VHF / Second Station Capable
Easy DSC Installation!
The GX1800G makes DSC easy. With an internal 66 Channel GPS built into the front panel, there is no need to hassle with wiring the radio to a GPS for DSC. Out of the box and ready to go, DSC calling, position sharing, waypoint navigation, navigation to DSC distress calls can all be performed with just a few simple steps.Second Station RAM4 compatibility Now compatible with Standard Horizon's latest second station microphone RAM4, model SSM-70H. All functions on the main radio can now be controlled on the Second Station RAM4, this includes all radio functions, DSC functions, and intercom features between the radio and the Second Station.E2O Easy to Operate Menu System Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.Ultra Compact Easy Installation Mounting a VHF radio has never been easier. The Explorer Series VHF's have an ultra thin, compact rear case, only 3.3” in depth or half the depth of comparable VHF radios on the market. The rear case design also gives flexibility when flush mounting the radio in tight areas or bracket mounting the radio by taking up less dash space, and allowing more mounting options. |
SPECIFICATIONS
Performance specifications are nominal, unless otherwise indicated, and are
subject to change without notice. Measured in accordance with TIA/EIA-603.
GENERAL
Channels ............................................. All International, USA and Canadian* *(Depending on the region setting) Normal Input Voltage ..................................................................... 13.8 V DC Operating Voltage Range ........................................................ 11 V to 16.5 V Current Drain Standby ............................................................................................ 0.45 A Receiver (at Maximum AF Output) .................................................... 0.8 A Transmit ..................................................................... 5.0 A (Hi), 1.0 A (Lo) NMEA 2000 Load Equivalency Number*1 ............................................ LEN=1 *1 (GX1850GPS, GX1850GPS/E and GX1850 only) DSC Transmitted Call Log .......................................................................... 24 DSC Distress Call Log ................................................................................ 27 DSC Received Call Log .............................................................................. 64 Individual Directory ................................................................................... 100 Group Directory .......................................................................................... 32 Waypoint Directory ................................................................................... 250 Route Directory ........................................................................................... 20 Display Type ............................................................. 2.6” x 1.4” (66 x 36 mm) Full Dot Matrix (222 x 122 pixels) Dimensions (W x H x D) ............................. 5.9" x 3.4" x 3.3" (150 x 85 x 82 mm) Flush-Mount Dimensions (W x H x D) ... 5.43" x 2.87" x 3.74" (138 x 73 x 95 mm) Weight ..................................................................................... 2.1 lbs (940 g)
TRANSMITTER
Frequency Range ........... 156.025 MHz to 161.600 MHz (INTERNATIONAL) RF Output Power ............................................................. 25 W (Hi), 1 W (Lo) Conducted Spurious Emissions ........... Less than −80 dBc (Hi), −66 dBc (Lo) Audio Response ......................................... within +1/−3dB of a 6 dB/Octave pre-emphasis characteristic at 300 to 3000 Hz Audio Distortion ....................................................................... Less than 5 % Modulation ................................... 16K0G3E (for Voice), 16K0G2B (for DSC) Frequency Stability ............ ±0.0003 % (–4 °F to +140 °F [−20 °C to +60 °C]) FM Hum and Noise ................................................................................ 50 dB
RECEIVER (for Voice and DSC)
Frequency Range ........................................... 156.050 MHz to 163.275 MHz Sensitivity 20 dB Quieting .............................................................................. 0.30 µV 12 dB SINAD ................................................................................ 0.25 µV Squelch Sensitivity (Threshold) .................................................... 0.13 µV Modulation Acceptance Bandwidth ................................................... ±7.5 kHz Selectivity (Typical) Spurious and Image Rejection ............... 75 dB for Voice (75 dB for DSC) Intermodulation and Rejection ................ 75 dB for Voice (70 dB for DSC) Audio Output ................................ 4.5 W (at 4 ohms external speaker output) Audio Response ......................................... within +1/–3dB of a 6 dB/Octave de-emphasis characteristic at 300 to 3000 Hz Frequency Stability ......................................... ±0.0003 % (–20 °C to +60 °C) Channel Spacing ................................................................................. 25 kHz DSC Format .......................................................................... ITU-R M.493-13 (European version: Meets ITU-R M493-14)
INTERNAL GPS RECEIVER (GX1850GPS, GX1850GPS/E, GX1800GPS and GX1800GPS/E only)
Receiver Channels ..................................................................... 66 Channels Sensitivity .......................................................................Less than –147 dBm Time to First Fix .............................................. 1 minute typical (@Cold Start) 5 seconds typical (@ Hot Start) Geodetic Datum ................................................................................. WGS84
NMEA 0183 INPUT/OUTPUT Sentences
4800 Baud selected: NMEA 0183 Input (4800 baud) ............ GGA, GLL, GNS, RMC, GSA, & GSV NMEA 0183 Output (4800 baud) .............. DSC, DSE, GGA*2 , GLL*2 , GNS*2 , RMC*2 , GSA*2 & GSV*2 38400 Baud selected: NMEA 0183-HS Input (38400 baud) ... GGA, GLL, GNS, RMC, GSA, & GSV NMEA 0183-HS Output (38400 baud) ...... DSC, DSE, GGA*2 , GLL*2 , GNS*2 , RMC*2 , GSA*2 & GSV*2 *2 (GX1850GPS, GX1850GPS/E, GX1800GPS and GX1800GPS/E only)
Manual do Produto em Ingles
