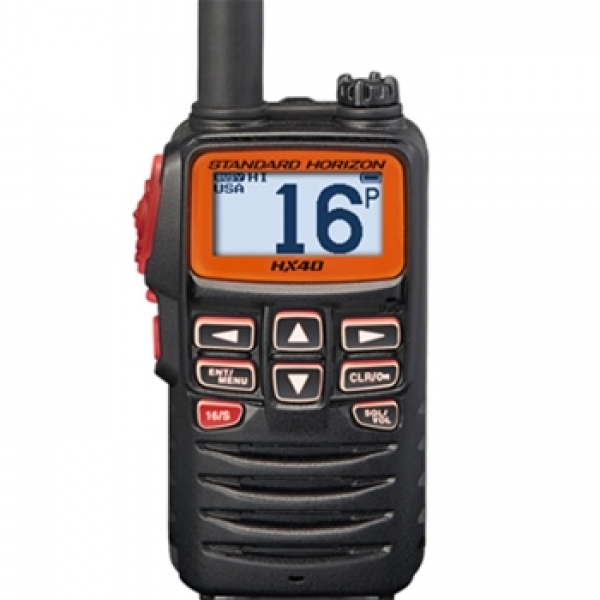

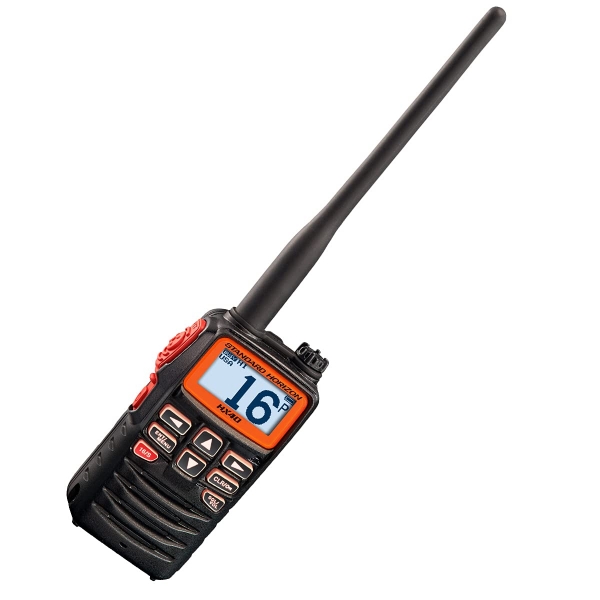

HX-40 6W Ultra Compact Marine Handheld Transceiver
Yaesu Standard Horizon
HX-40 6W Ultra Compact Marine Handheld Transceiver
Features
Ultra Compact Case Design
Measuring 2.05" W x 3.74" H x 1.3" D the new HX40 is about the size of a deck of playing cards. Making this portable radio easy to fit just about anywhere.Better Resolution (Dot Matrix) Display The HX40 comes with a very visible Dot Matrix display with a very clear, very bright fully backlit display.E2O Easy to Operate Menu System New intuitive menu system allows easy access to all of the setup functions of the radio, making it easy to customize settings based on the preferences of the userBuilt in FM Broadcast band receive The HX40 has an expanded receiver allowing the user to tune in to their favorite FM radio station. The radio will receive FM broadcast bands between 76 MHz to 108 MHz.3-year Waterproof Warranty Because the HX40 is built better, it’s backed better. If your Standard Horizon HX40 ever fails for any reason including water damage during normal use in the first three years, STANDARD HORIZON will repair or replace it free, without hassle or charges…period! If it fails thereafter in normal use it is covered by Standard Horizon’s Flat Rate Service Program. |
SPECIFICATIONS
Performance specifications are nominal, unless otherwise indicated, and are subject to change without notice. Measurements*1 are in accordance with TIA/EIA-603 (U.S.A.) and EN301 178 (EXP). *1(Except the FM Broadcast Receiver)
GENERAL
Frequency Ranges ......................................... TX: 156.025 MHz - 161.600 MHz (Frequency differs in some regions) RX: 156.050 MHz - 163.275 MHz (USA/International, Including WX channels)
Channel Spacing ..................................................................................... 25 kHz
Frequency Stability ........................ ±3 ppm (–4°F to +140°F [–20°C to +60°C])
Emission Type ..................................................................................... 16K0G3E
Antenna Impedance .................................................................................... 50
Operating Voltage .................................................... 7.4 V DC, Negative Ground
Current Consumption .......................... 330 mA (Receive, Typical at AF MAX.) 100 mA (Standby) 1.6 A / 1.0 A / 0.7 A (TX: 6 W (5 W)* / 2.5 W / 1 W)
Operating Temperature ................................ –4°F to +140°F (–20°C to +60°C)
Case Size (W x H x D) ............... 2.05” x 3.74” x 1.3” (52 mm x 95 mm x 33 mm) (w/o knob & antenna)
Weight (Approx.) ................. 8.1 oz (230 g) (with hand strap, belt clip & antenna)
TRANSMITTER
RF Power Output
......................................... 6 W (5 W)* / 2.5 W / 1 W (@7.4 V)
Maximum Deviation ................................................................................. ±5 kHz
Spurious Emission ............................................................... Less than 0.25 µW
Microphone Impedance .............................................................................. 2 k *(5W TX required in Some Countries)
RECEIVER
Circuit Type
.............................................. Double Conversion Superheterodyne
Intermediate Frequencies ................................... 1st: 38.85 MHz, 2nd: 450 kHz
Sensitivity ....................................................... 0.25 µV for 12 dB SINAD (U.S.A.) -5 dBµ for 20 dB SINAD (EXP) Adjacent Channel Selectivity ........................................................... 70 dB typical Intermodulation ................................................................. 70 dB typical (U.S.A) 68dB typical (EXP) Hum & Noise Ratio ......................................................................... 40 dB typical Selectivity ........................................................ 12 kHz / 25 kHz (–6 dB / –60 dB)
AF Output (Internal SP) ....................... 600 mW @16 for 10 % THD (@7.4 V)
FM BROADCAST RECEIVER
Frequency Range ................................................................. 65 MHz - 108 MHz
Frequency Step ...................................................................................... 100 kHz
Sensitivity ...................................................................... 1.0 µV for 12 dB SINAD
Symbols placed on the equipment
Direct current
