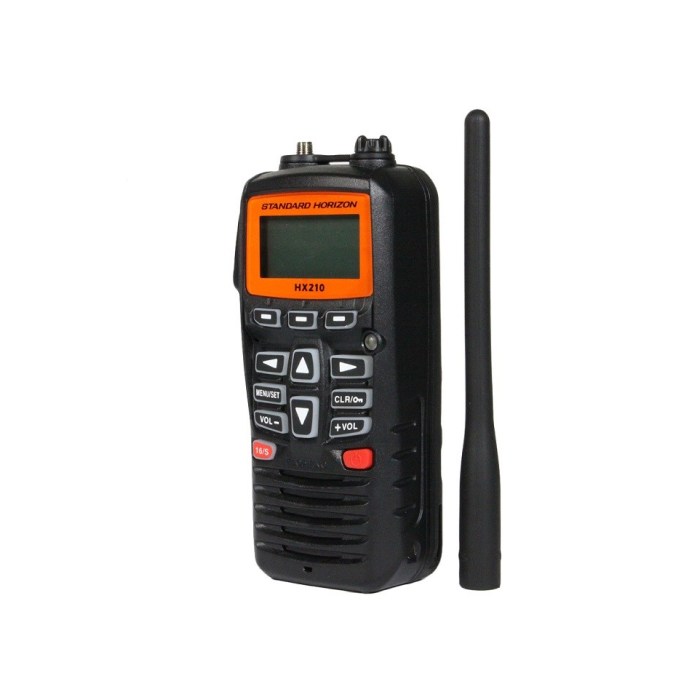

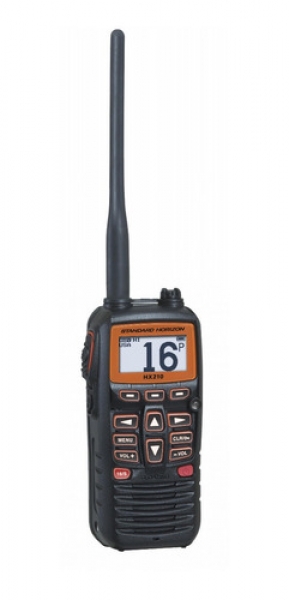

YAESU HX-210 Standard Floating 6 Watt Handheld VHF Transceiver
Yaesu Standard Horizon
YAESU HX-210 Standard Floating 6 Watt Handheld VHF Transceiver
Features:
- Floating / Submersible IPX7 Waterproof rating (3.3 feet or 1 meter for 30 minutes)
- All USA, International and Canadian channels
- Selectable 6W / 2.5W / 1W output power
- Receive WX and FM radio bands 76MHz to 108MHz
- High resolution dot matrix LCD display
- E2O Easy to Operate Menu system
- Programmable function keys
- Speaker mic Jack
- High capacity 1850 mAh Li-Ion battery
- 3 hour desktop rapid charger
- 12VDC and 110VAC charging cables and charging cradle included
- 3 year waterproof warranty
Compact Case Design
Compact, ergonomic case design is a result of the new internal, large capacity 1850 mAh Lithium Ion battery technology. This gives the radio a much smaller case design yet light enough to float face up if dropped in the waterWater Activated Emergency Strobe light If the radio falls in the water an emergency strobe light is automatically activated, even when the unit is turned off!!! The strobe can be reconfigured to flash on and off, flash SOS, or set to stay on continuously.Oversized full dot matrix display The HX210 boasts one of the largest displays in a compact and affordable handheld VHF. With a larger display, greater (dot matrix) resolution, and a super bright backlight there will be no mistaking the information displayed on the face of the radio day or night.E20 Easy to Operate Menu System New intuitive menu system allows easy access to all of the setup functions of the radio, making it easy to customize settings based on the preferences of the userBuilt in FM Broadcast band receive The HX210 has an expanded receiver allowing the user to tune in to their favorite FM radio station. The radio will receive FM broadcast bands between 76 MHz to 108 MHz.3-year Waterproof Warranty Because the HX210 is built better, it’s backed better. If your Standard Horizon HX210 ever fails for any reason including water damage during normal use in the first three years, STANDARD HORIZON will repair or replace it free, without hassle or charges…period! If it fails thereafter in normal use it is covered by Standard Horizon’s Flat Rate Service Program. |
SPECIFICATIONS
Performance specifications are nominal, unless otherwise indicated, and are subject to change without notice. Measurements*1 are in accordance with TIA/EIA-603 (U.S.A.) and EN301 178 (EXP). *1(Except the FM Broadcast Receiver)
GENERAL
Frequency Ranges ......................................... TX: 156.025 MHz - 161.600 MHz (Frequency differs in some regions) RX: 156.050 MHz - 163.275 MHz (Inter National, Including WX channels)
Channel Spacing ..................................................................................... 25 kHz
Frequency Stability .................................................... ±3 ppm (–20°C to +60°C)
Emission Type ..................................................................................... 16K0G3E
Antenna Impedance .................................................................................... 50
Operating Voltage .................................................... 7.4 V DC, Negative Ground
Current Consumption ........................... 330 mA (Receive, Typical at AF MAX.) 100 mA (Standby) 1.6 A / 1.0 A / 0.7 A (TX: 6 W (5 W)*2 / 2.5 W / 1 W)
Operating Temperature ............................................................. –20°C to +60°C
|Case Size (W x H x D) ........... 2.36” x 5.20” x 1.57” (60 mm x 132 mm x 40 mm) (w/o knob & antenna)
Weight (Approx.): ...............9.88 oz (280 g) (with hand strap, belt clip & antenna)
TRANSMITTER
RF Power Output ....................................... 6 W (5 W)*2 / 2.5 W / 1 W (@7.4 V )
Maximum Deviation ................................................................................. ±5 kHz
Spurious Emission ............................................................... Less than 0.25 µW
Microphone Impedance .............................................................................. 2 k *2(5 W TX required in Some Countries)
RECEIVER
Circuit Type .............................................. Double Conversion Superheterodyne
Intermediate Frequencies ................................... 1st: 38.85 MHz, 2nd: 450 kHz
Adjacent Channel Selectivity ........................................................... 70 dB typical
Intermodulation ................................................................. 70 dB typical (U.S.A) 68 dB typical (EXP)
Hum & Noise Ratio: .............................................................. 40 dB typical
Sensitivity:........................................................0.25 µV for 12 dB SINAD (U.S.A.) -5 dBµ for 20 dB SINAD (EXP) Selectivity:..............................................12 kHz / 25 kHz (–6 dB / –60 dB)
AF Output (Internal SP):........................ 600 mW @16 for 10 % THD (@7.4 V)
FM BROADCAST RECEIVER
Frequency Range: ................................................................. 65 MH z - 108 MHz
Frequency Step:....................................................................................... 100 kHz
Sensitivity:....................................................................... 1.0 µV for 12 dB SINAD
Symbols placed on the equipment Direct current
