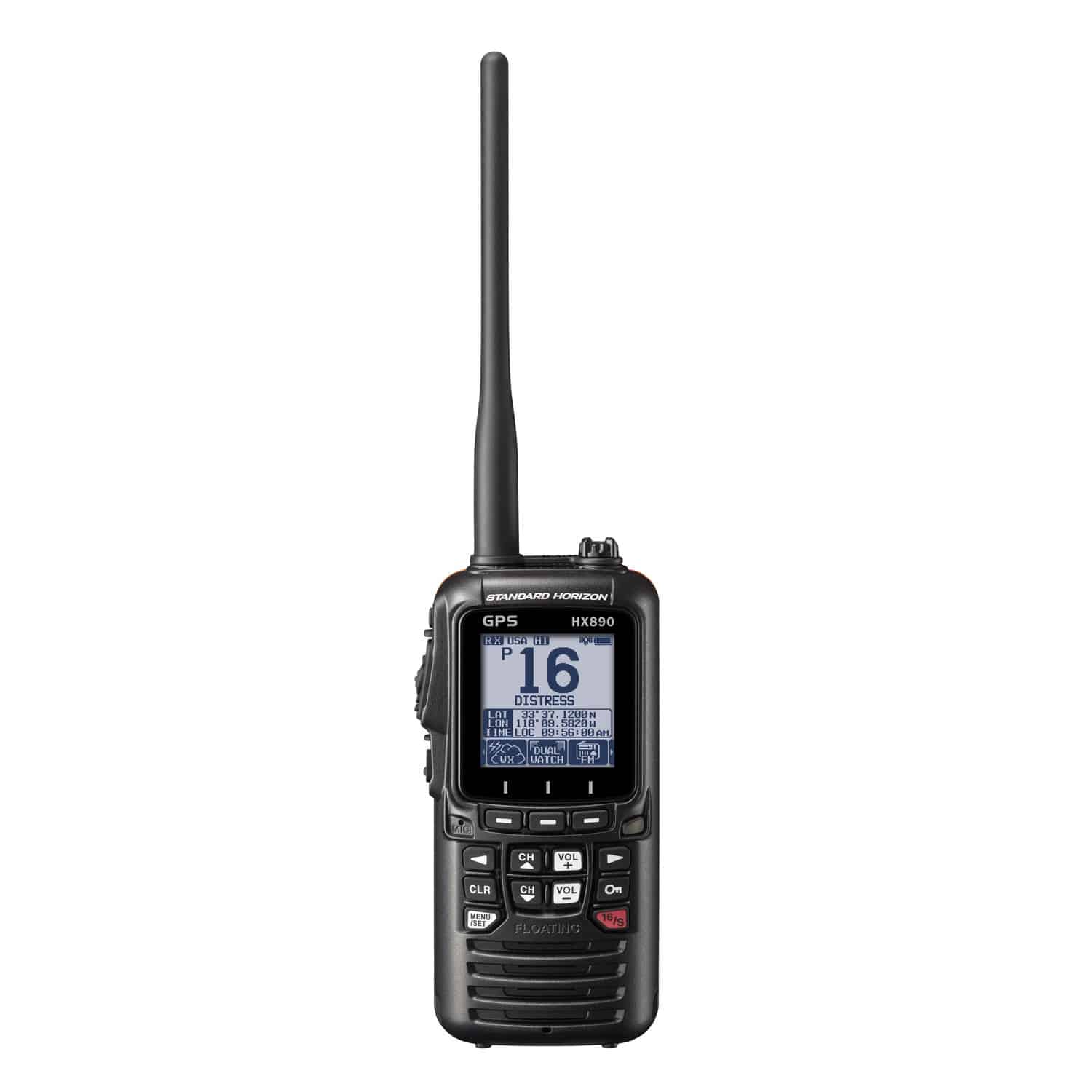

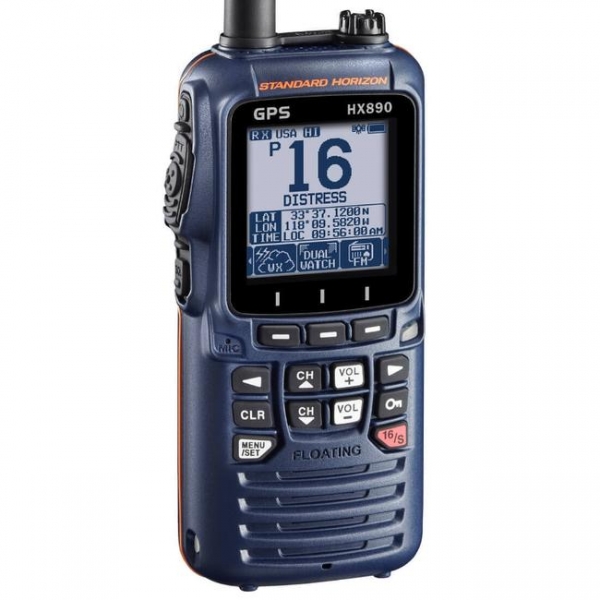

HX-890 - Floating 6 Watt Class H DSC Handheld VHF/GPS
Leading the way again!! Standard Horizon is proud to introduce the brand new HX890 HIGH END FLOATING CLASS H DSC VHF/GPS. Now available in two different color options, Black or Navy Blue. Some prominent new features include two scrambler systems built in, both a 4 code CVS2500A and a 32 code FVP-42 scrambler system ensure secure communications out on the water. Another new feature includes a built in FM Broadcast band receiver, during times when radio communication is not necessary, relax with some music on the FM Radio broadcast bands. Other notable features include: Switchable daytime or nighttime mode, waypoint and route navigation, Group monitor function utilizing DSC Group position call. The new HX890 has also been redesigned with a new ergonomic case design and has been rigorously tested to conform with the Military Standard (MIL-STD-810F). The feature packed HX890 comes packaged with all the accessories including the rechargeable Li-Ion battery, Alkaline battery tray, 110V wall charger, 220V adapter, charging cradle, 12V charger, PC programming cable and belt lip with lanyard, and it's backed by our industry leading 3 year waterproof warranty.
Features:
- 6W transmit power output (Selectable 6/ 2/ 1 W)
- 700mW Loud Audio and Noise Canceling Function for both TX/RX audio
- Rugged case construction conforms to Military Standard (MIL-STD-810F)
- Available in Navy Blue or Black
- Submersible IPX8 Construction and it floats
- DSC (Digital Selective Calling) ITU-R M.493 Class-H Operation
- W2.60’’ x H5.43’’ x D1.50’’ – Round Case Design provides excellent ergonomics
- Built-in Integrated 66 channel WAAS GPS Receiver
- 11-hour Operating Time with 1800mAh high capacity Li-ion battery
- Easy to Operate Menu System with a large (1.7’’ x 1.7’’) Full-dot matrix display
- Selectable Display Mode - Day & Night Mode
- Waypoint and Route navigation
- Group Monitor Function utilizing DSC Group Position Call
- MOB (Man over Board) feature
- Water Activated Emergency “WHITE” Strobe Light
- Two Scrambler Systems built-in – 4-code CVS2500A & 32-code FVP-42
- Versatile Scanning operation (Dual Watch and Triple Watch)
- NOAA Weather Channels with Weather Alert
- FM Broadcast Radio Receiver
- Micro USB Data jack for PC programming
- 3 Year Waterproof Warranty
Easy to Operate Icon/Menu System
|
SPECIFICATIONS
Performance specifications are nominal, unless otherwise indicated, and are
subject to change without notice. Measurements are in accordance with TIA/ EIA-603 (U.S.A.) and EN301 178 (EXP).
GENERAL
Frequency Range........................................ TX: 156.025 MHz - 161.600 MHz (Frequency differs in some regions) RX: 156.050 MHz - 163.275 MHz (USA / International, Including WX channels)
Channel Spacing ................................................................................. 25 kHz
Frequency Stability ..................... ±3 ppm (−4°F to +140°F [−20°C to +60°C])
Emission Type .................................. 16K0G3E for Voice, 16K0G2B for DSC
Antenna Impedance ............................................................................... 50 Ω
Supply Voltage ....................... 7.4 V DC, Negative Ground (Battery Terminal)
Current Consumption ........................................................ 380 mA (Receive) 130 mA (Standby, GPS On) 110 mA (Standby, GPS Off) 1.6 A / 1.0 A / 0.7 A (TX: 6 W (5 W)* / 2 W / 1 W) Operating Temperature ............................ −4°F to +140°F (−20 °C to +60 °C)
DSC Individual Directory ........................................ Store up to 100 Identities
DSC Group Directory ................................................... Store up to 30 Groups
DSC Format .......................................................................... ITU-R M.493-14
NMEA Output .......................... DSC, DSE, GLL, GGA, GSA, GSV, and RMC
Case Size (W x H x D) ...... 2.60” x 5.43” x 1.50” (66 mm x 138 mm x 38 mm) (w/o knob & antenna)
Weight .................................................................................. 10.94 oz (310 g)
(Including: SBR-13LI, hand strap, belt clip & antenna) *
(5 W TX required in Some Countries)
TRANSMITTER
RF Power Output .............. 6 W (5 W)* (HIGH) / 2 W (MEDIUM) / 1 W (LOW) (@7.4V)
Modulation Type .............................................................. Variable Reactance
Maximum Deviation ............................................................................. ±5 kHz
Spurious Emission ............................................................ Less than 0.25 μW
Microphone Impedance .......................................................................... 2 kΩ *
(5 W TX required in Some Countries)
RECEIVER (for Voice and DSC)
Circuit Type .......................................... Double-Conversion Superheterodyne
Intermediate Frequencies ....................................... for Voice 1st: 38.85 MHz 2nd: 450 kHz for DSC 1st: 30.4 MHz 2nd: 450 kHz
Sensitivity ................................. for Voice 0.25 μV for 12 dB SINAD (U.S.A.) -5 dBμ for 20 dB SINAD (EXP) for DSC 0.5 μV for 12 dB SINAD (U.S.A.) 0 dBμ for 20 dB SINAD (EXP) Adjacent Channel Selectivity ..................................................... 70 dB typical
Intermodulation .......................................................................... 70 dB typical
Hum & Noise Ratio .................................................................... 45 dB typical
Selectivity .................................................. 12 kHz / 25 kHz (−6 dB / −60 dB)
AF Output (Internal SP) .................. 700 mW @16 Ω for 10 % THD (@7.4 V)
GPS
Receiver Channels ..................................................................... 66 Channels
Sensitivity ..................................................................... Less than −147 dBm
Time to First Fix ................................................... 1 min typical (@Cold Start) 5 sec typical (@Hot Start)
Geodetic Datum ................................................................................. WGS84
FM BROADCAST RECEIVER
Frequency Range: ............................................................ 65 MHz - 108 MHz
Frequency Step: ................................................................................ 100 kHz
Sensitivity: ................................................................ 1.0 μV for 12 dB SINAD
Symbols placed on the equipment
Direct current
